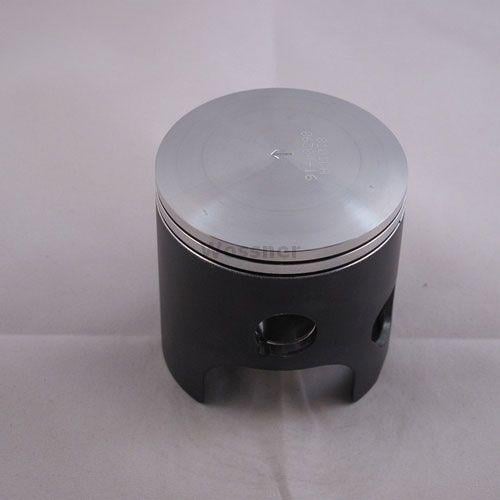

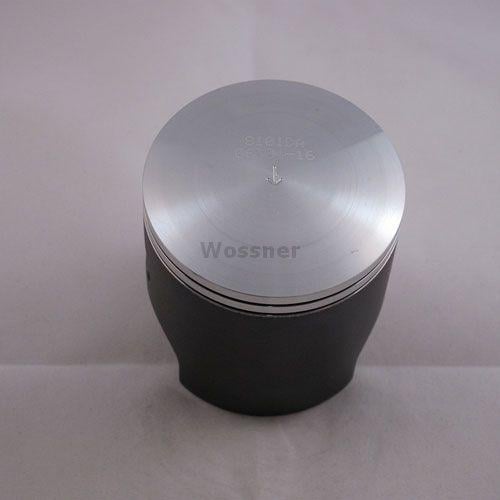

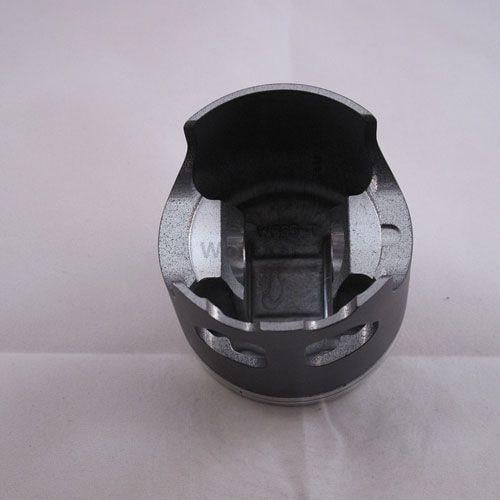

Piston Kit 88-07 YFS200 66.00, Wossner 8101DA Yamaha ATV

Piston Kit 88-07 YFS200 66.00, Wossner 8101DA Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-07 YFS200 66.00, Wossner 8101DA Yamaha ATV
• Part number: 56-W573+000.WO
• Brand: Wossner
• Forged piston construction for increased strength and thermal performance
• Enhanced heat transfer from combustion chamber to cylinder wall
• Elliptical profile distributes thrust loads evenly under expansion
• Minimises localised stress and reduces the likelihood of piston failure
• Manufactured in Germany with precision engineering
• Bore Size: 66.00 mm
• Actual Bore Diameter: 65.94 mm
• Stroke: 57.00 mm
• Display Displacement: 199 cm³
• Clearance: 0.06 mm
• Compression Ratio (Wossner and OEM): 2-stroke
• Compression Height: 29.90 mm

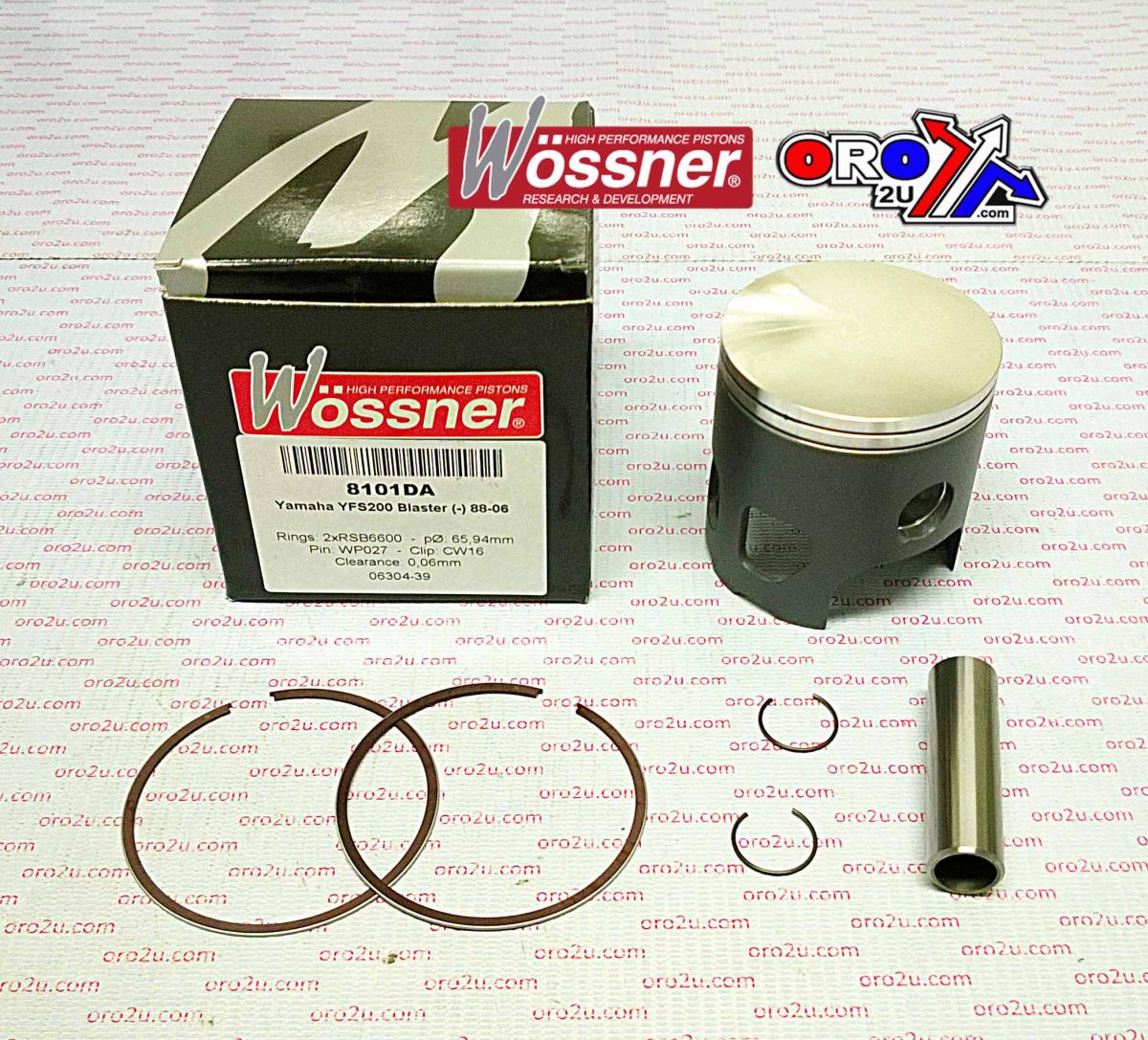

• Cross-Reference Wossner Part Numbers
• Piston Kit: 8101DA
• Lock: CW16
• Pin: WP027
• Ring Set: RSB6600 (Quantity: 2)
• Rod: P2030
• Part No.: 56-W573+000.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFS BLASTER 200cc — 1988–2006

Match your exact make, model, year and specification before ordering.
