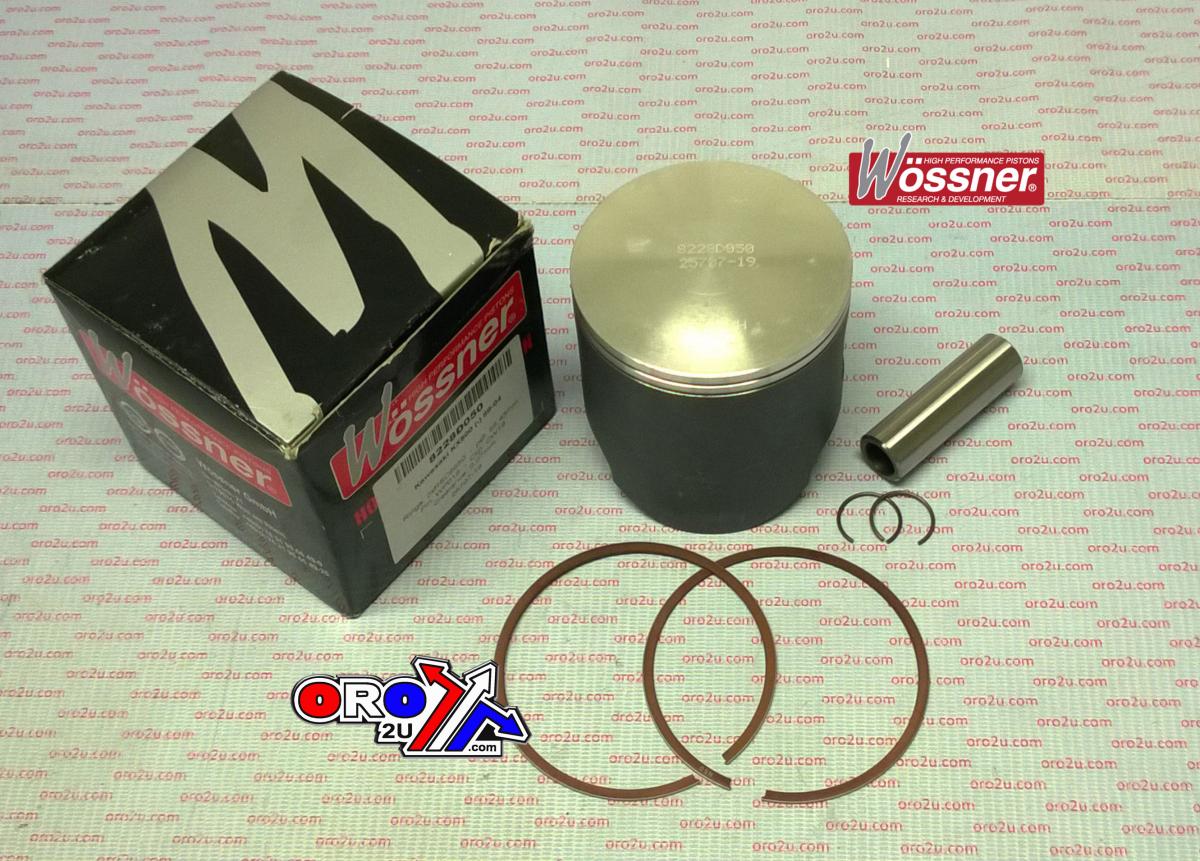

Piston Kit 88-04 KX500 86.50, Wossner 8228D050 Kawasaki MX

Piston Kit 88-04 KX500 86.50, Wossner 8228D050 Kawasaki MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-04 KX500 86.50, Wossner 8228D050 Kawasaki MX
• Part number: 56-W575.P2.WO
• Brand: Wossner
• Forged piston construction provides exceptional strength
• Elliptical design allows uniform thermal expansion and load distribution
• Engineered for efficient combustion heat dissipation
• Made in Germany for precision and reliability
• Bore Size: 86.50 mm (actual diameter 86.43 mm)
• Stroke: 86.00 mm
• Display Volume: 500 cm³
• Compression Height: 37.50 mm
• Clearance: 0.07 mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8228D050
• Lock: CW19
• Pin: WP019
• Ring Set: RSC8650 x2
• Rod: P2039
• Kit Part No: 56-W575.P2.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 500cc — 1988–2004

Match your exact make, model, year and specification before ordering.
