Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX

Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX. Find the product specifications and compatibility information below.

Product details

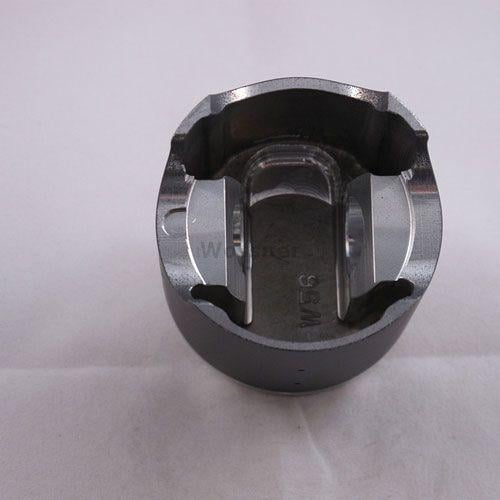

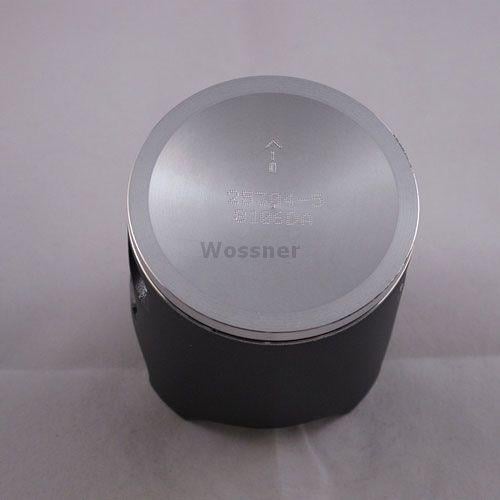

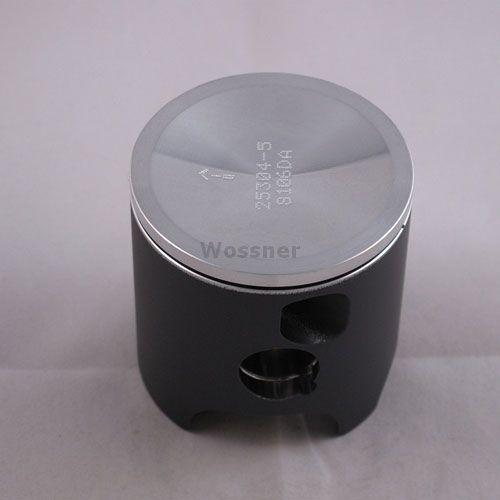

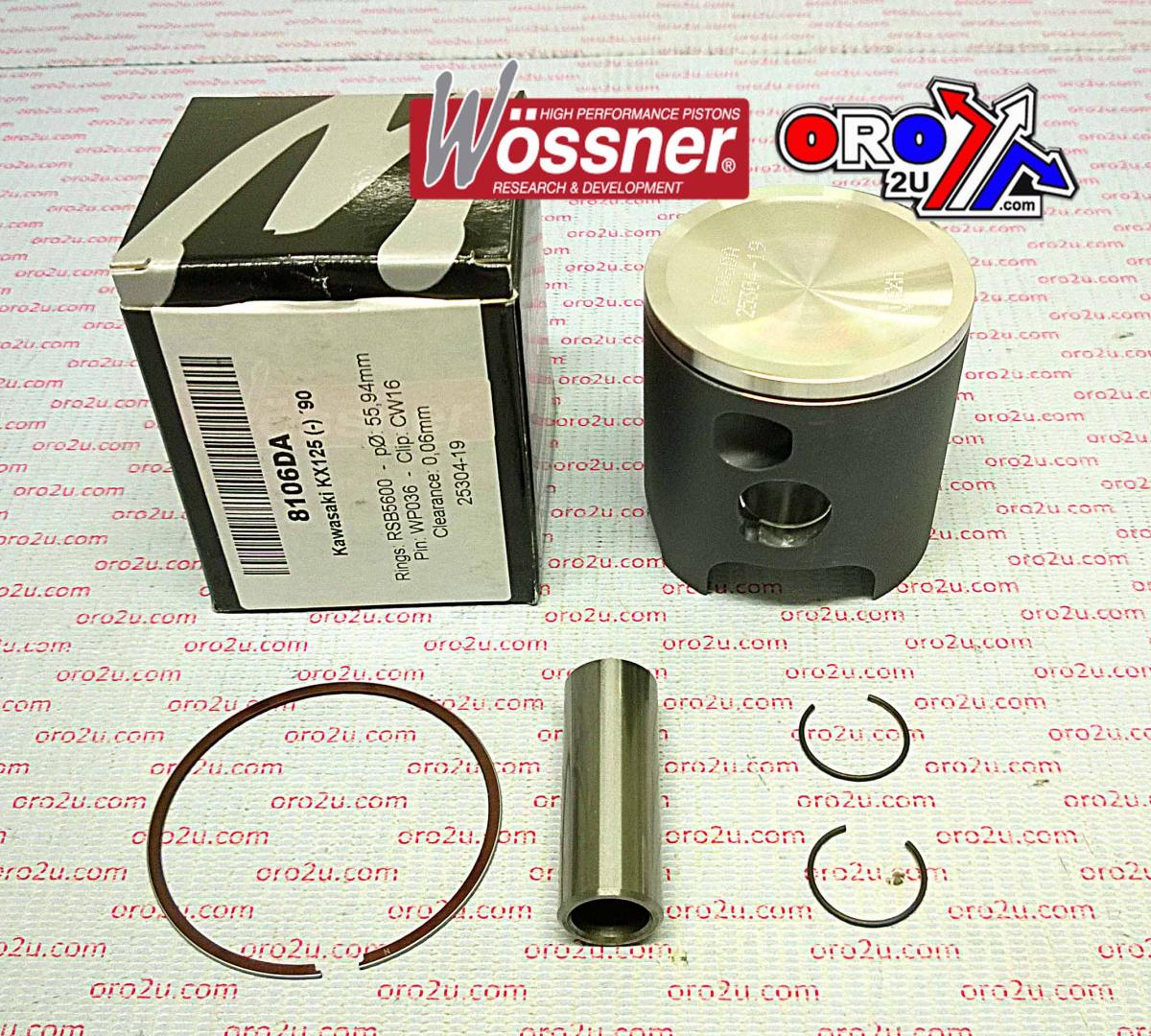

• Product: Piston Kit 1990 KX125 56.50, Wossner 8106D050 Kawasaki MX
• Part number: 56-W589+050.WO
• Brand: Wossner
• Forged piston construction for improved mechanical strength and wear resistance
• Optimised design for effective combustion heat transfer to the cylinder walls
• Elliptical profile reduces localised pressure and improves load distribution
• Built for 2-stroke engine applications
• Manufactured in Germany
• Bore Size: 56.50mm (+0.50 oversize)
• Actual Bore: 56.44mm
• Compression Height: 29.50mm
• Clearance: 0.06mm
• Stroke: 50.60mm
• Displacement: 125 cm³
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Cross-Reference OEM Part Numbers
• Wossner Piston: 8106D050
• Ring Set: RSB5650
• Lock: CW16
• Pin: WP036
• Rod: P2033
• Internal Reference: 56-W589+00050.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 1991
• KAWASAKI KX 125cc — 1990

Match your exact make, model, year and specification before ordering.
