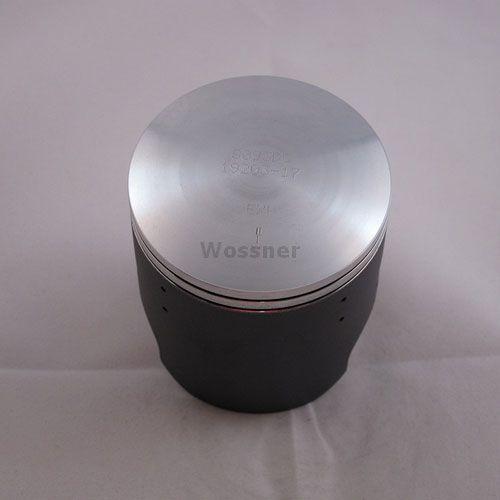

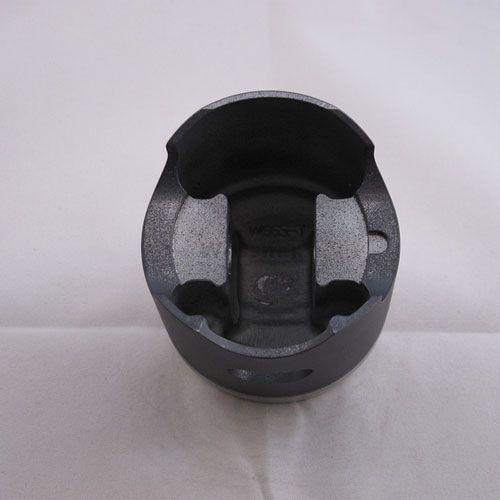

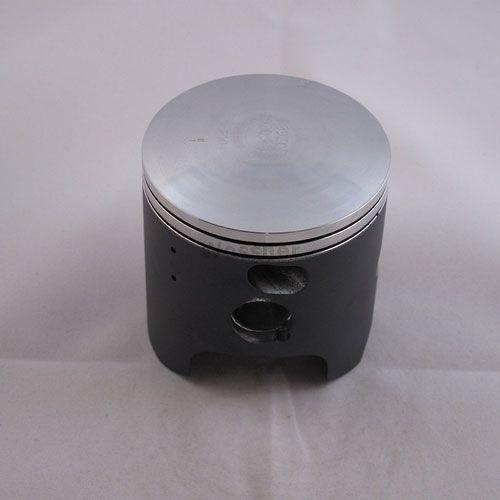

Piston Kit 86-09 KDX200 66.50, Wossner 8093D050 Kawasaki MX

Piston Kit 86-09 KDX200 66.50, Wossner 8093D050 Kawasaki MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 86-09 KDX200 66.50, Wossner 8093D050 Kawasaki MX
• Part number: 56-W597+P2.WO
• Brand: Wossner
• Forged piston design for enhanced strength and longevity
• Efficient thermal transfer from combustion chamber to cylinder walls
• Elliptical profile ensures even thrust load distribution under heat expansion
• Manufactured in Germany for precision and performance
• Bore Size: 66.50 mm
• Piston Diameter: 66.44 mm
• Engine Displacement: 198 cm³
• Stroke: 58.00 mm
• Clearance: 0.06 mm
• Compression Height: 32.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

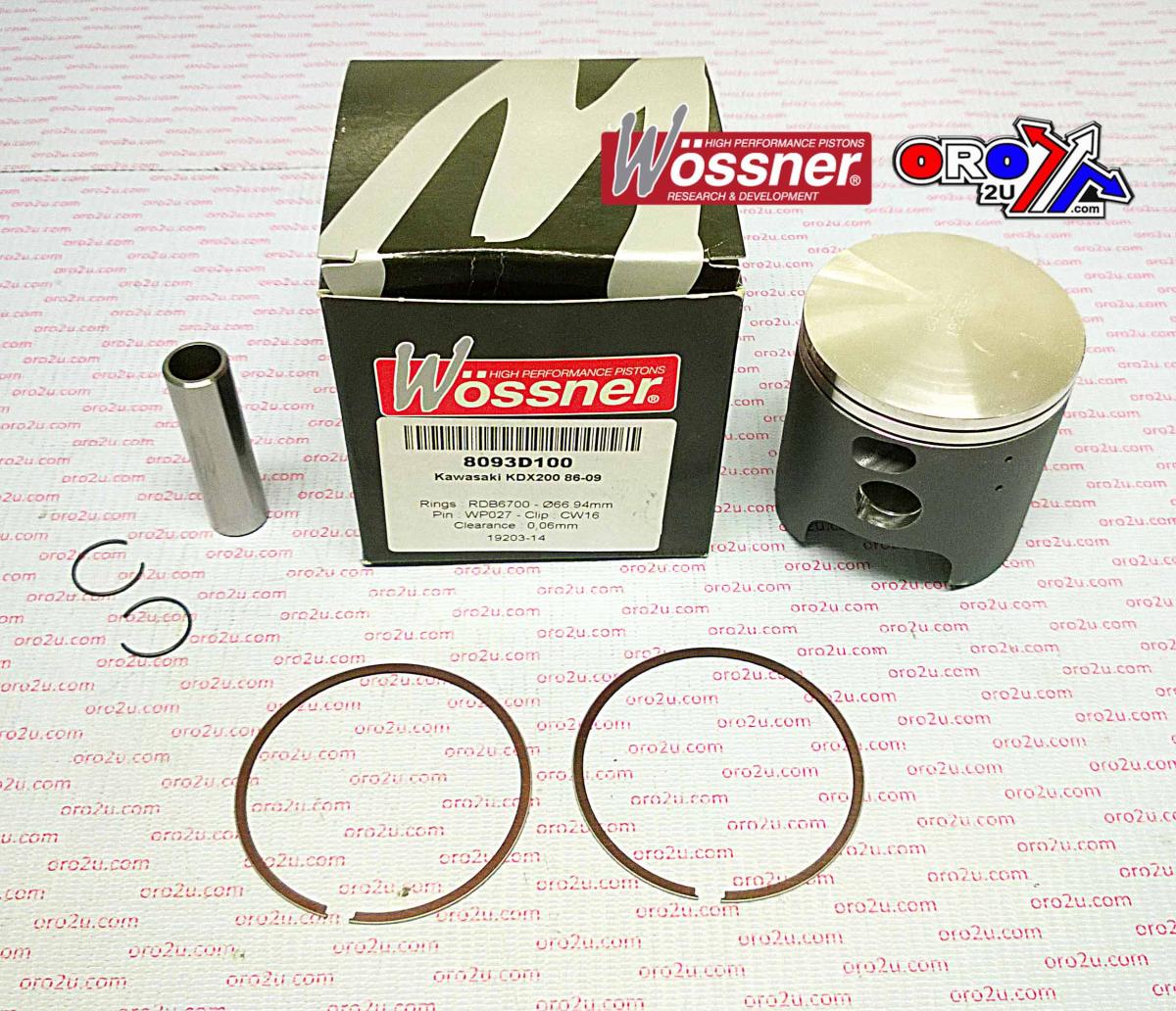

• Cross-Reference OEM Part Numbers
• Not specified in provided data
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8093D050
• Lock: CW16
• Pin: WP027
• Ring Set: RSB6650 x 2
• Rod: P2033

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KDX 200cc — 1986–2006
• KAWASAKI KDX 200cc — 1986–2009

Match your exact make, model, year and specification before ordering.
