Piston Kit 88-91 DT200 66.00, Wossner 8070DA Yamaha Dirt

Piston Kit 88-91 DT200 66.00, Wossner 8070DA Yamaha Dirt. Find the product specifications and compatibility information below.

Product details

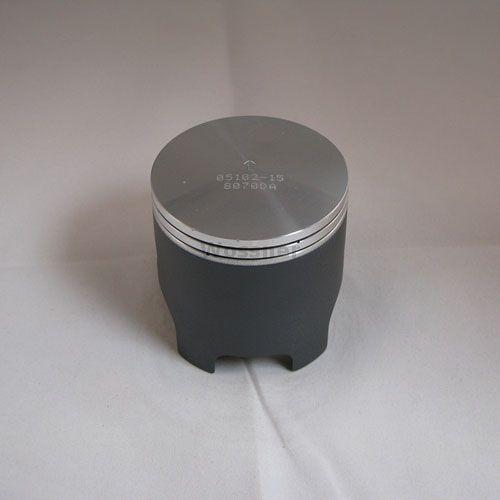

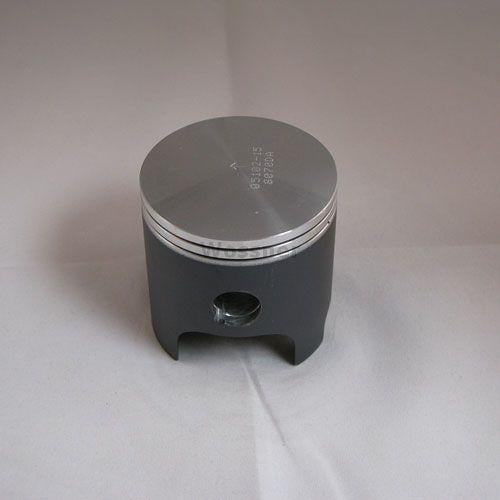

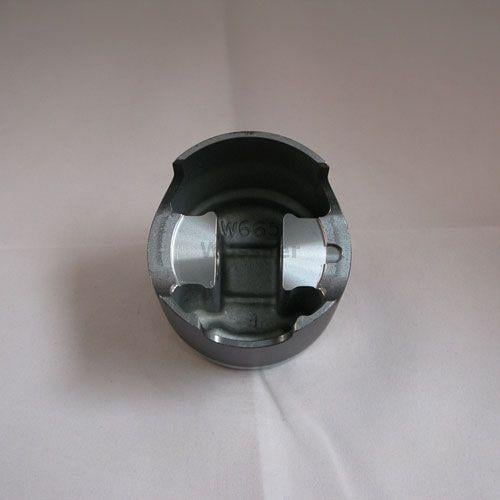

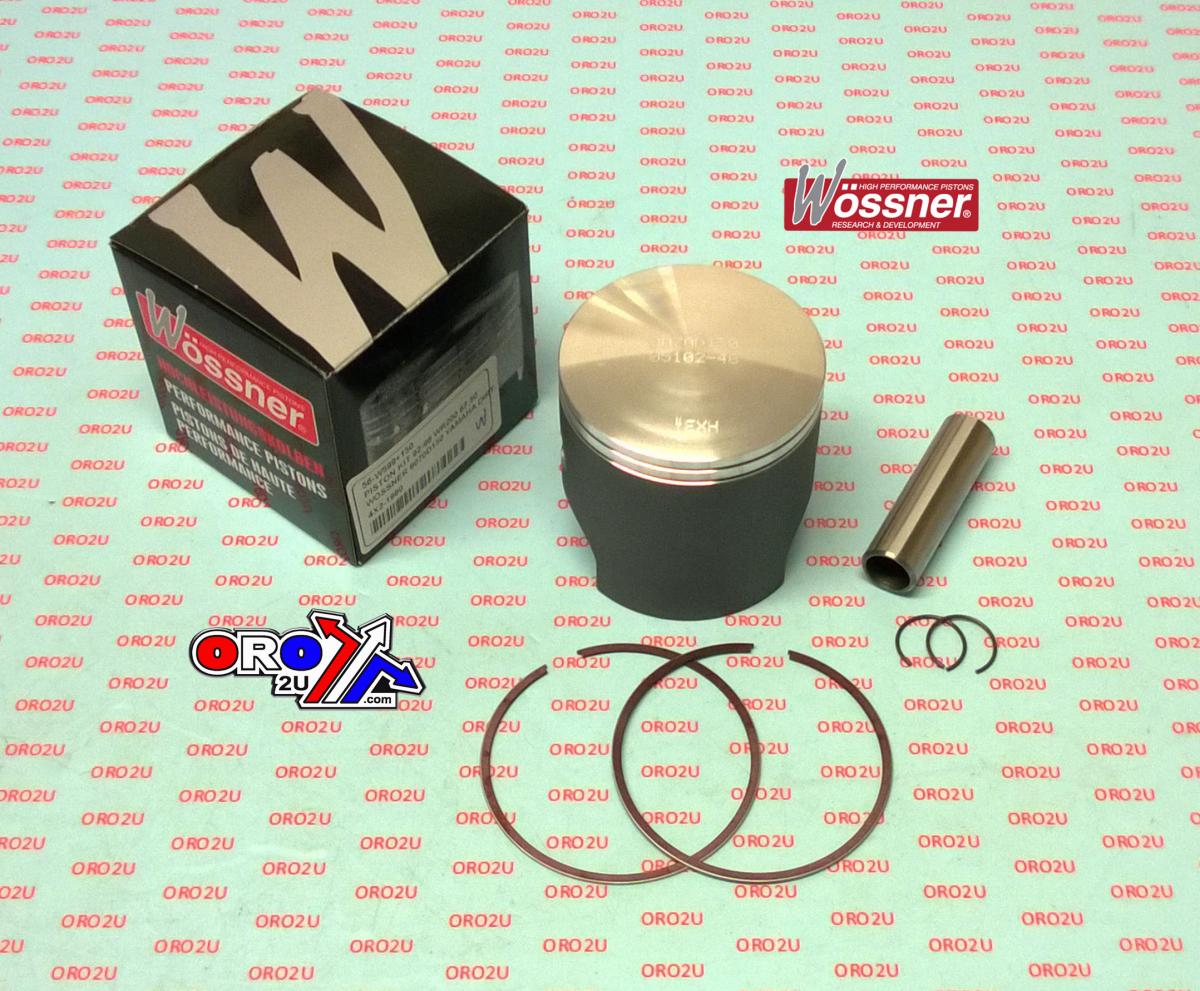

• Product: Piston Kit 88-91 DT200 66.00, Wossner 8070DA Yamaha Dirt
• Part number: 56-W599+000
• Brand: Wossner
• Piston kit 66mm Bore 65.94 Wossner 8070DA (STD)
• DT200R 1988 - 1991,
• WR200 1992 - 1998,
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Part No. 56-W599+000 (www.fdyperformance.com)
• Lock P/N CW16
• Pin P/N WP027
• Ring Set P/N RSB6600 X 2
• Display (cm3) 195
• Hub stroke (mm) 57.00
• Clearance (mm) 0.06
• Wossner compression Ratio: 2 stroke
• OEM Compression ratio: 2 stroke
• Dome volume (cm3)
• Compression height (mm) 29.90
• Theorectical weight (G)
• 3ET-11631-02-95
• Piston: 2XJ-11631-01-97
• Piston Rings: 3JM-11601-00-00
• Bearing: 93310-316D6-00
• Wristpin: 4L0-11633-00-00
• Circlips: 93450-17044-00

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA WR 200cc — 1992–1998
• YAMAHA DT R 200cc — 1990–1991
• YAMAHA DT R 200cc — 1988–1991
• YAMAHA DT 200cc — 1990–1991

Match your exact make, model, year and specification before ordering.
