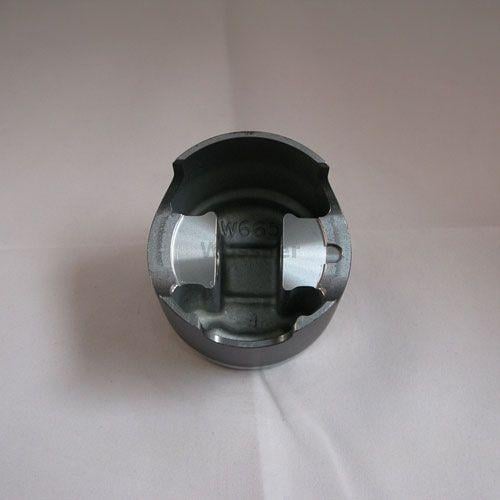

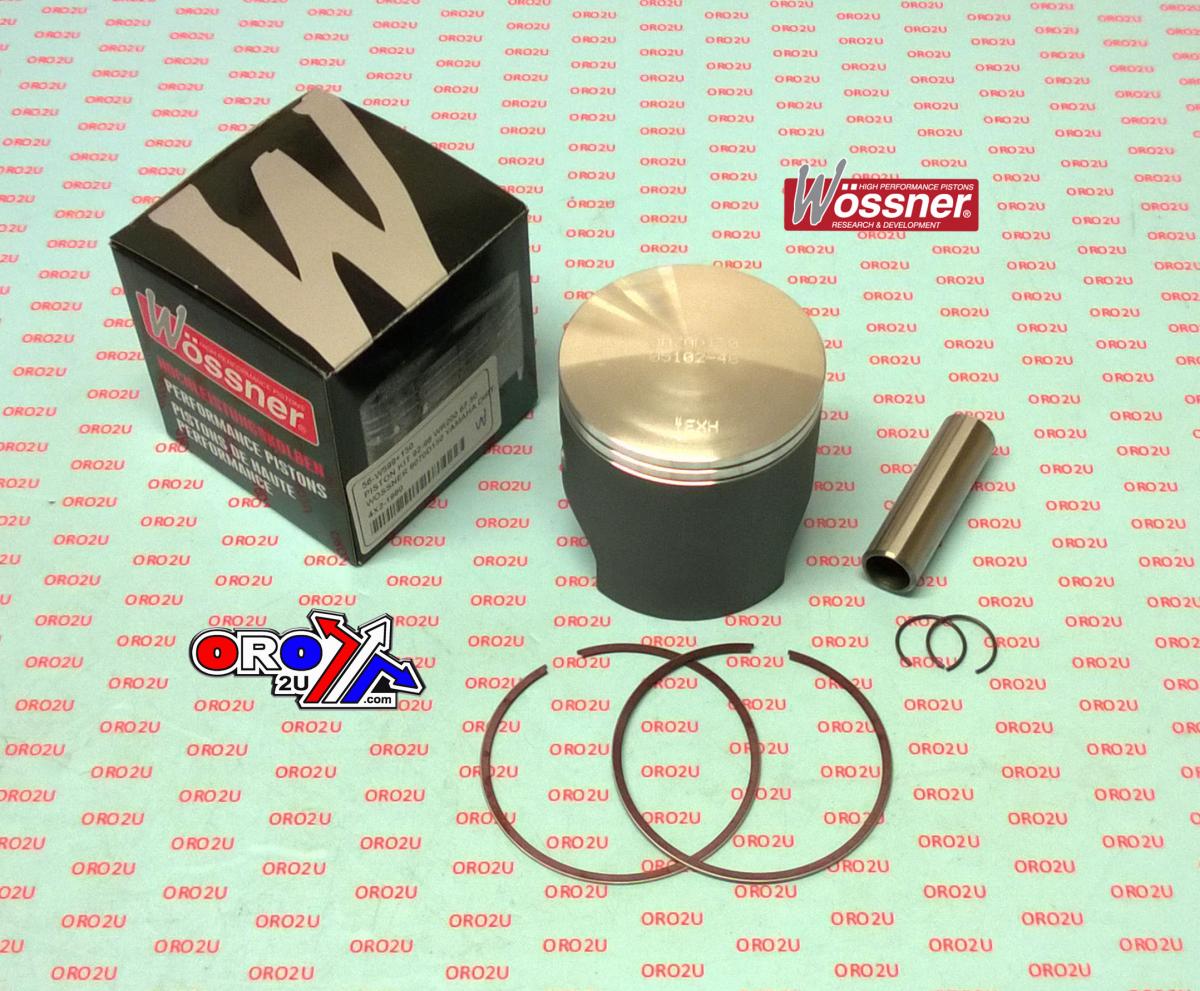

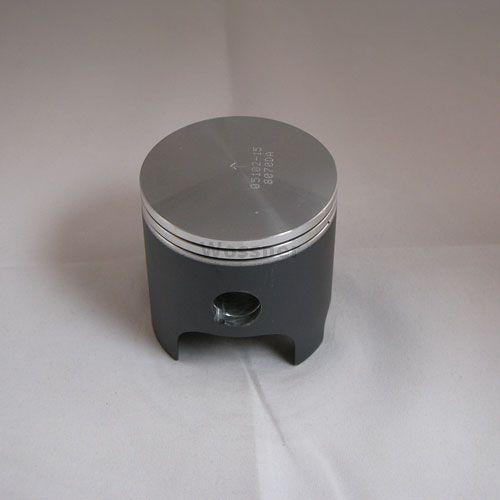

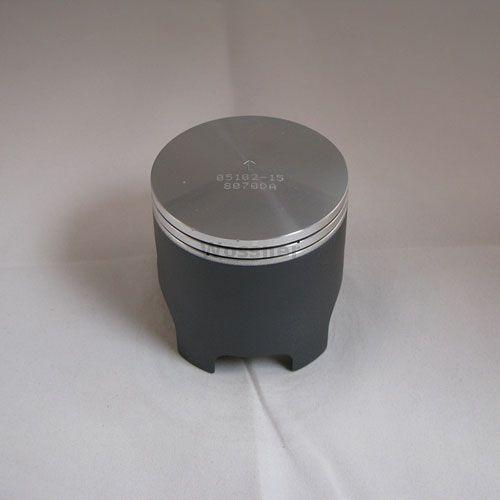

Piston Kit 92-98 WR200 66.80, Wossner 8070D080 Yamaha Dirt

Piston Kit 92-98 WR200 66.80, Wossner 8070D080 Yamaha Dirt. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 92-98 WR200 66.80, Wossner 8070D080 Yamaha Dirt
• Part number: 56-W599+080
• Brand: Wossner
• Forged for enhanced strength and engine longevity
• Engineered for efficient combustion heat transfer
• Elliptical shape for uniform bearing surface and balanced thrust loads
• Manufactured in Germany
• Bore Size: 66.75 mm
• Piston Diameter: 66.74 mm
• Engine Displacement: 195 cm³
• Stroke: 57.00 mm
• Clearance: 0.06 mm
• Compression Height: 29.90 mm
• Compression Ratio: 2-stroke (Wossner and OEM)
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8070D080
• Lock: CW16
• Pin: WP027
• Ring Set: RSB6680 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA WR 200cc — 1992–1998
• YAMAHA DT R 200cc — 1990–1991
• YAMAHA DT R 200cc — 1988–1991
• YAMAHA DT 200cc — 1990–1991

Match your exact make, model, year and specification before ordering.
