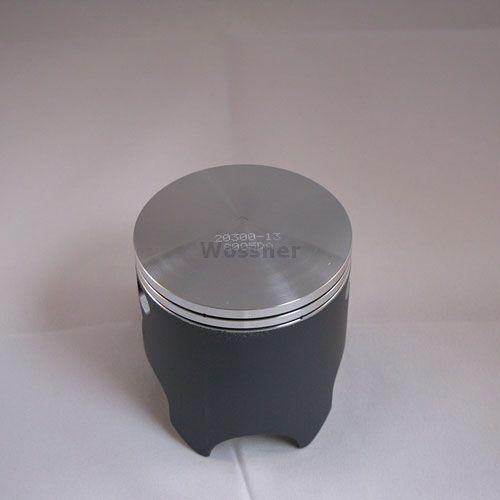

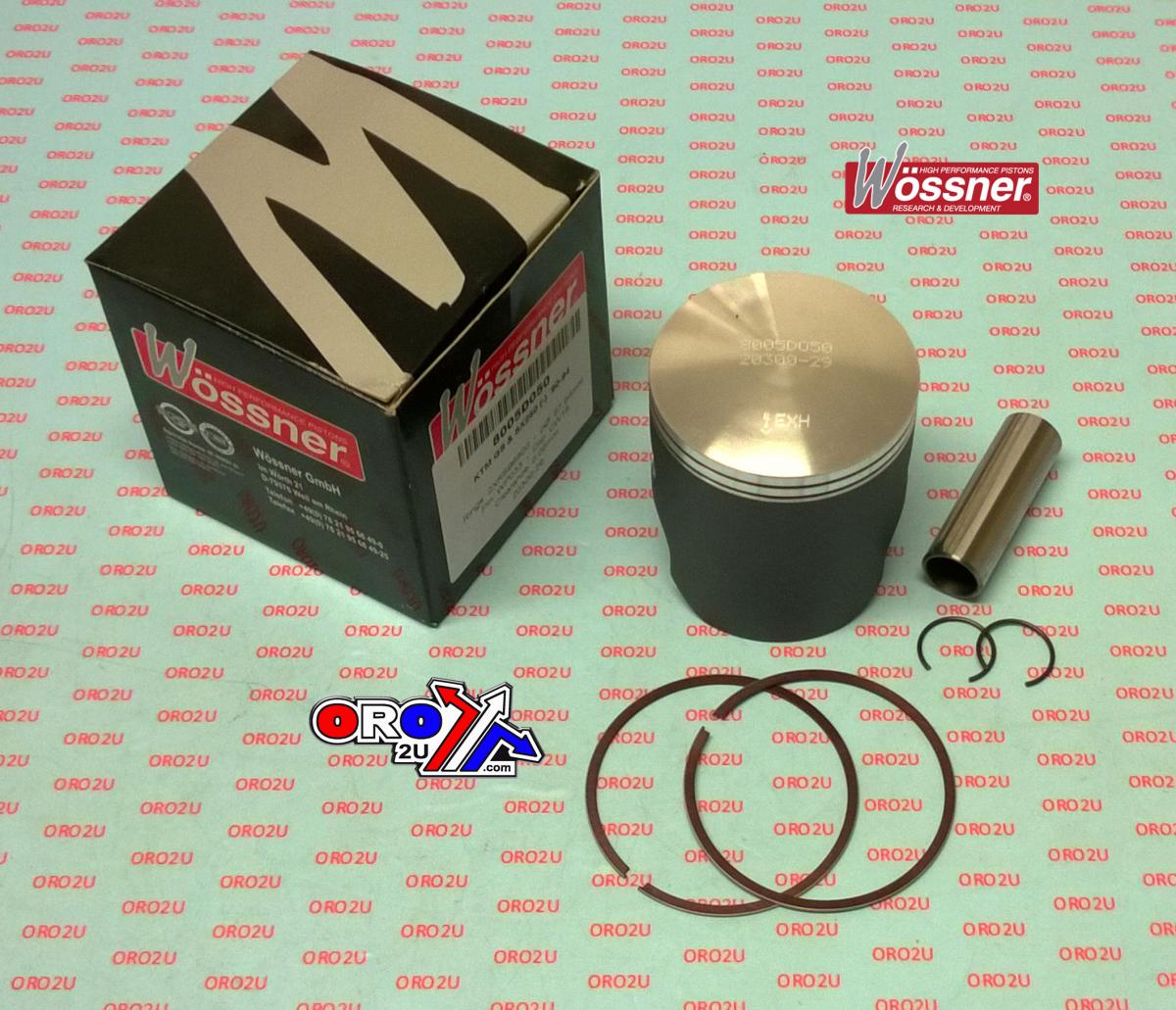

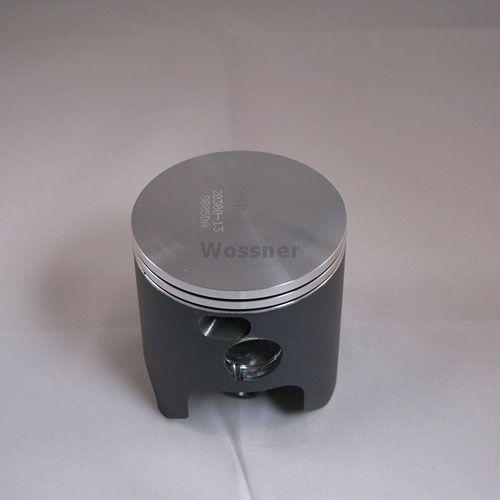

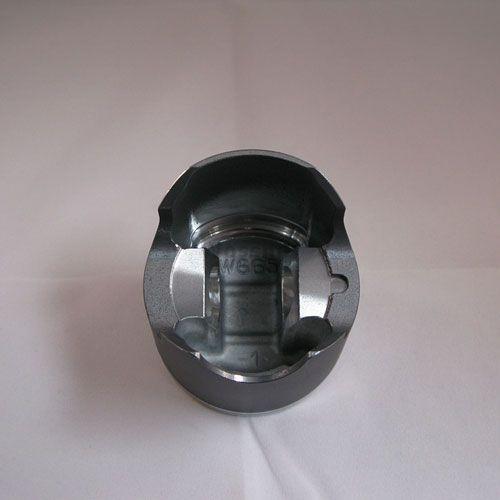

Piston Kit 90-94 KTM250 67.50, Wossner 8005DB Forged

Piston Kit 90-94 KTM250 67.50, Wossner 8005DB Forged. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 90-94 KTM250 67.50, Wossner 8005DB Forged
• Part number: 56-W601.B.WO
• Brand: Wossner
• Forged piston design for superior durability and performance
• Enhanced heat transfer for combustion chamber cooling
• Elliptical geometry provides even load distribution and reduced localised pressure
• Manufactured in Germany
• Bore Size: 67.51 mm
• Piston Diameter: 67.45 mm
• Engine Displacement: 249 cm³
• Stroke: 69.50 mm
• Clearance: 0.06 mm
• Compression Height: 29.70 mm
• Compression Ratio: 2-stroke (Wossner and OEM)
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8005DB
• Lock: CW18
• Pin: WP033
• Ring Set: RSB6750 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 250cc — 1990–1994
• KTM GS 250cc — 1990–1994
• KTM MX 250cc — 1990–1994
• KTM EXC 250cc — 1990–1994
• KTM EGS 250cc — 1990–1994

Match your exact make, model, year and specification before ordering.
