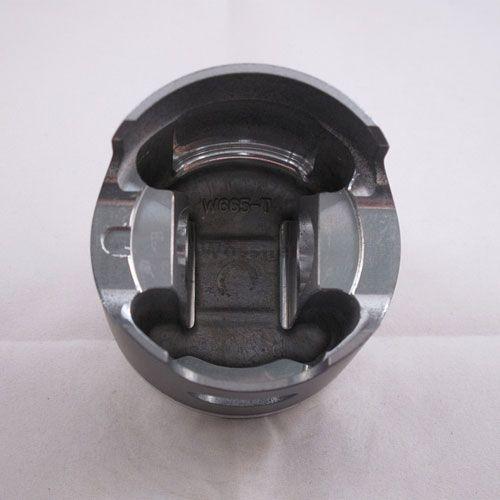

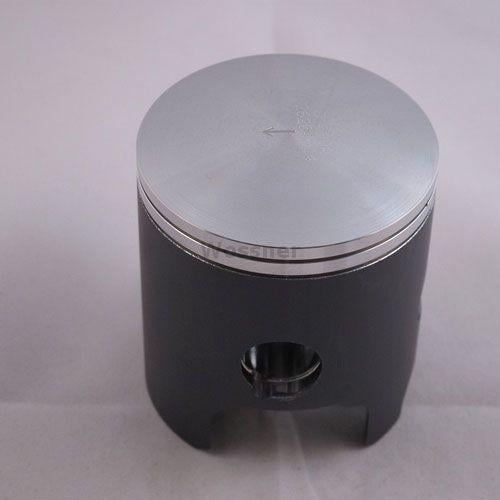

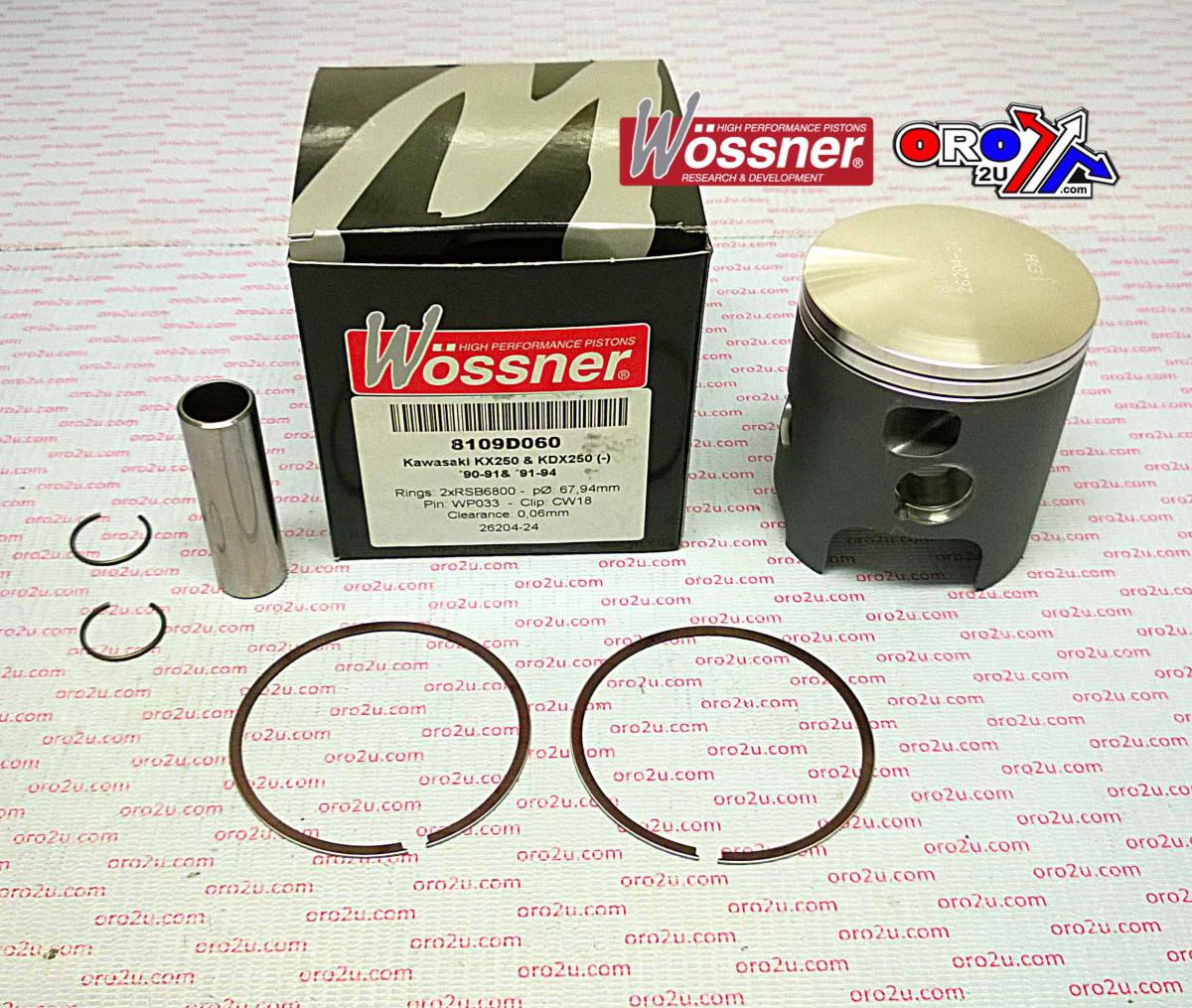

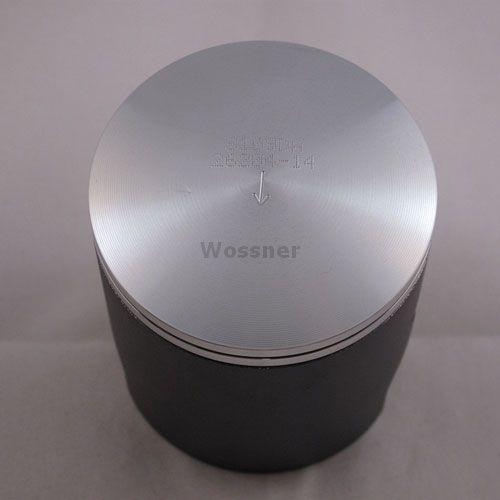

Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX

Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX
• Part number: 56-W607+060.WO
• Brand: Wossner
• Forged construction for high strength and resistance to wear
• Engineered for effective combustion heat transfer to cylinder walls
• Elliptical shape evenly distributes thrust loads under thermal expansion
• Precision-manufactured in Germany
• Bore Size: 68.00 mm
• Piston Diameter: 67.94 mm
• Engine Displacement: 250 cm³
• Stroke: 70.00 mm
• Clearance: 0.06 mm
• Compression Height: 37.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8109D060
• Lock: CW18
• Pin: WP033
• Ring Set: RSB6800 x 2
• Rod: P2022

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 250cc — 1990–1991
• KAWASAKI KDX 250cc — 1991–1994
• KAWASAKI KDX 250cc — 1991–1997
• KAWASAKI KDX E 250cc — 1992–1995

Match your exact make, model, year and specification before ordering.
