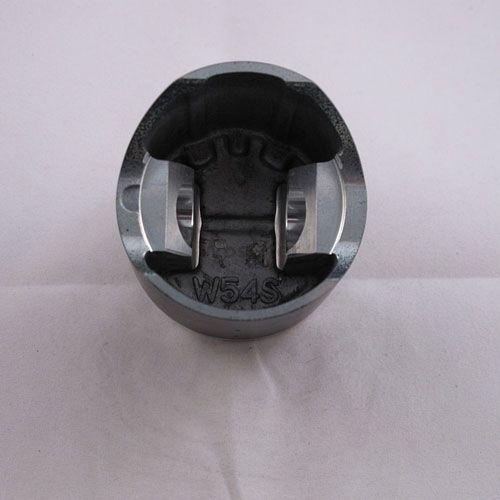

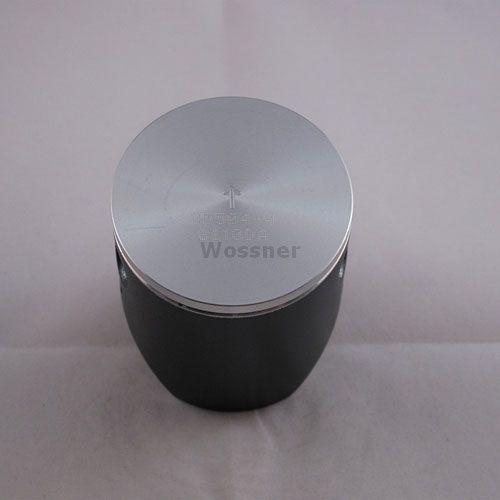

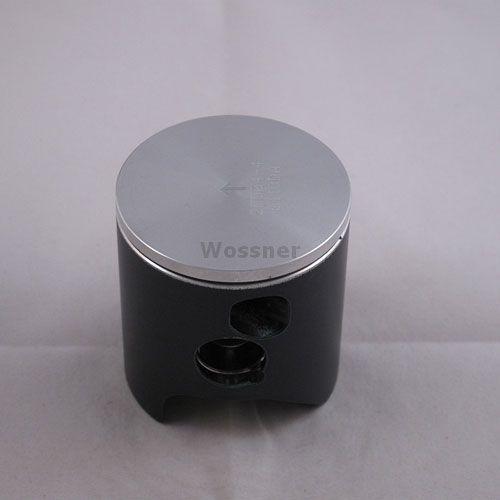

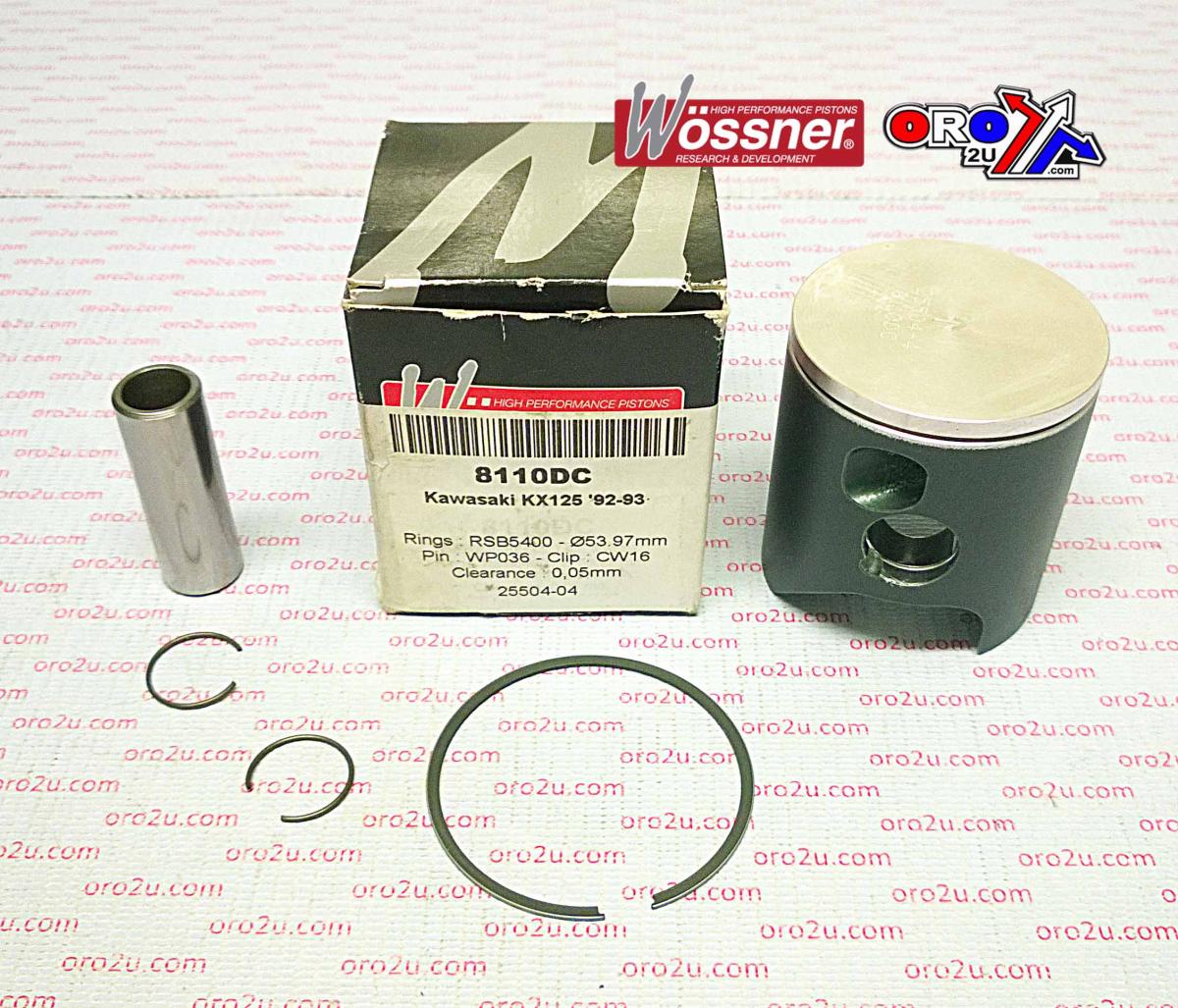

Piston Kit 92-93 KX125 54.00, Wossner 8110DB Kawasaki MX

Piston Kit 92-93 KX125 54.00, Wossner 8110DB Kawasaki MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 92-93 KX125 54.00, Wossner 8110DB Kawasaki MX
• Part number: 56-W626+00B.WO
• Brand: Wossner
• Forged piston for enhanced durability and strength
• Optimised heat transfer from combustion chamber to cylinder wall
• Elliptical geometry reduces wear by evenly distributing thrust loads
• Manufactured in Germany for consistent performance and fit
• Bore Size: 54.01 mm
• Piston Diameter: 53.95 mm
• Engine Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.06 mm
• Compression Height: 29.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)
• Cross-Reference Wossner Part Numbers
• Piston Kit: 8110DB
• Lock: CW16
• Pin: WP036
• Ring Set: RSB5400
• Rod: P2037

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 1992–1993
• KAWASAKI KX 125cc — 1993

Match your exact make, model, year and specification before ordering.
