Piston Kit 87-93 KTM125, Wossner 8011DA Forged MX

Piston Kit 87-93 KTM125, Wossner 8011DA Forged MX. Find the product specifications and compatibility information below.

Product details

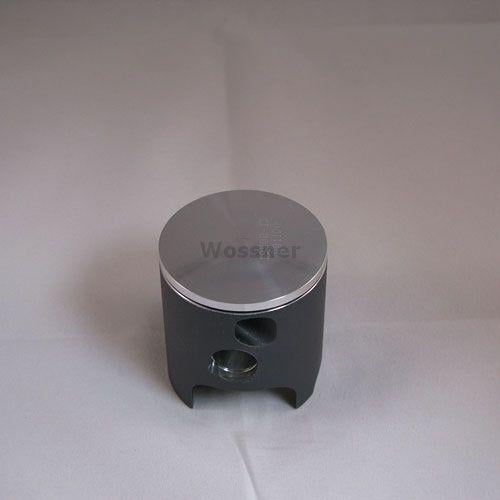

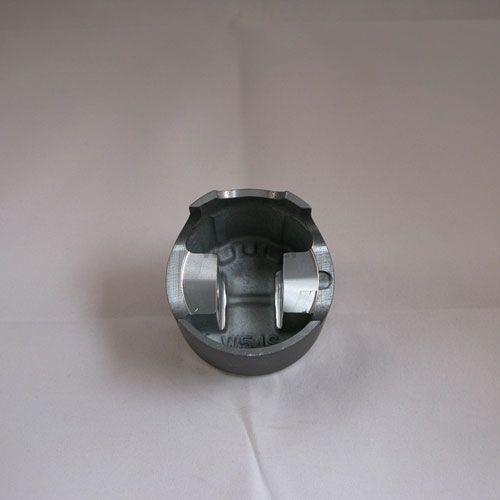

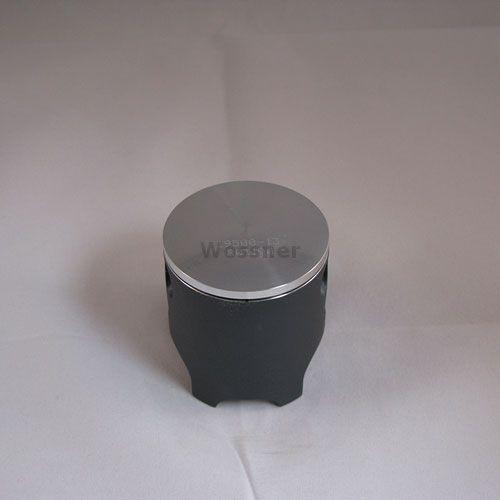

• Product: Piston Kit 87-93 KTM125, Wossner 8011DA Forged MX
• Part number: 56-W627.00A.WO
• Brand: Wossner
• Forged construction for superior strength and wear resistance
• Optimised for efficient heat dissipation from combustion chamber to cylinder walls
• Elliptical piston profile ensures even load distribution and reduces thrust stress
• Manufactured in Germany for consistent quality and precision
• Bore Size: 54.19 mm
• Engine Displacement: 125 cm³
• Stroke: 54.10 mm
• Clearance: 0.06 mm
• Compression Height: 28.00 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

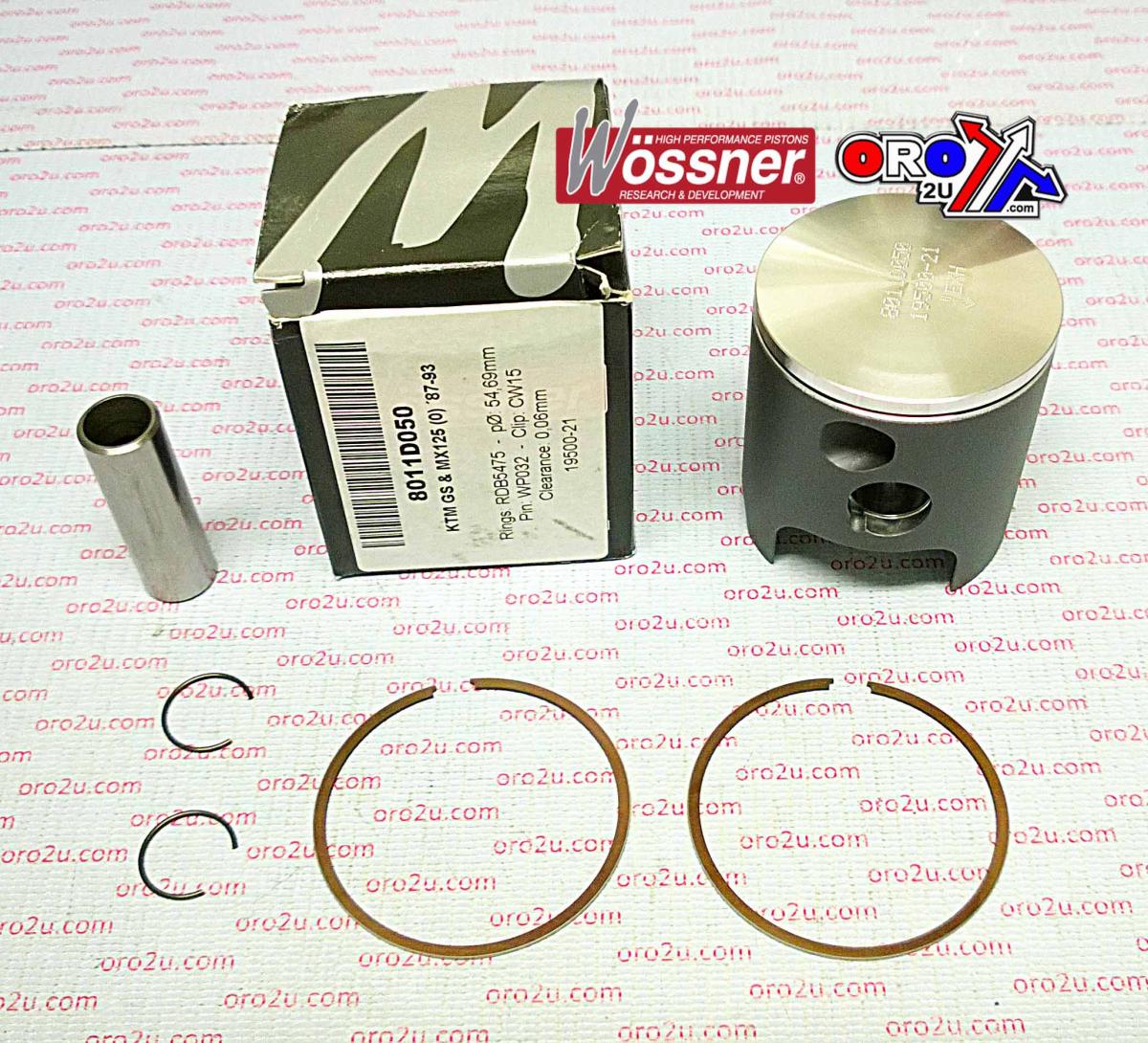

• Cross-Reference Wossner Part Numbers
• Piston Kit: 8011DA
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5425 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 125cc — 1987–1993
• KTM MX 125cc — 1987–1993
• KTM GS 125cc — 1987–1993

Match your exact make, model, year and specification before ordering.
