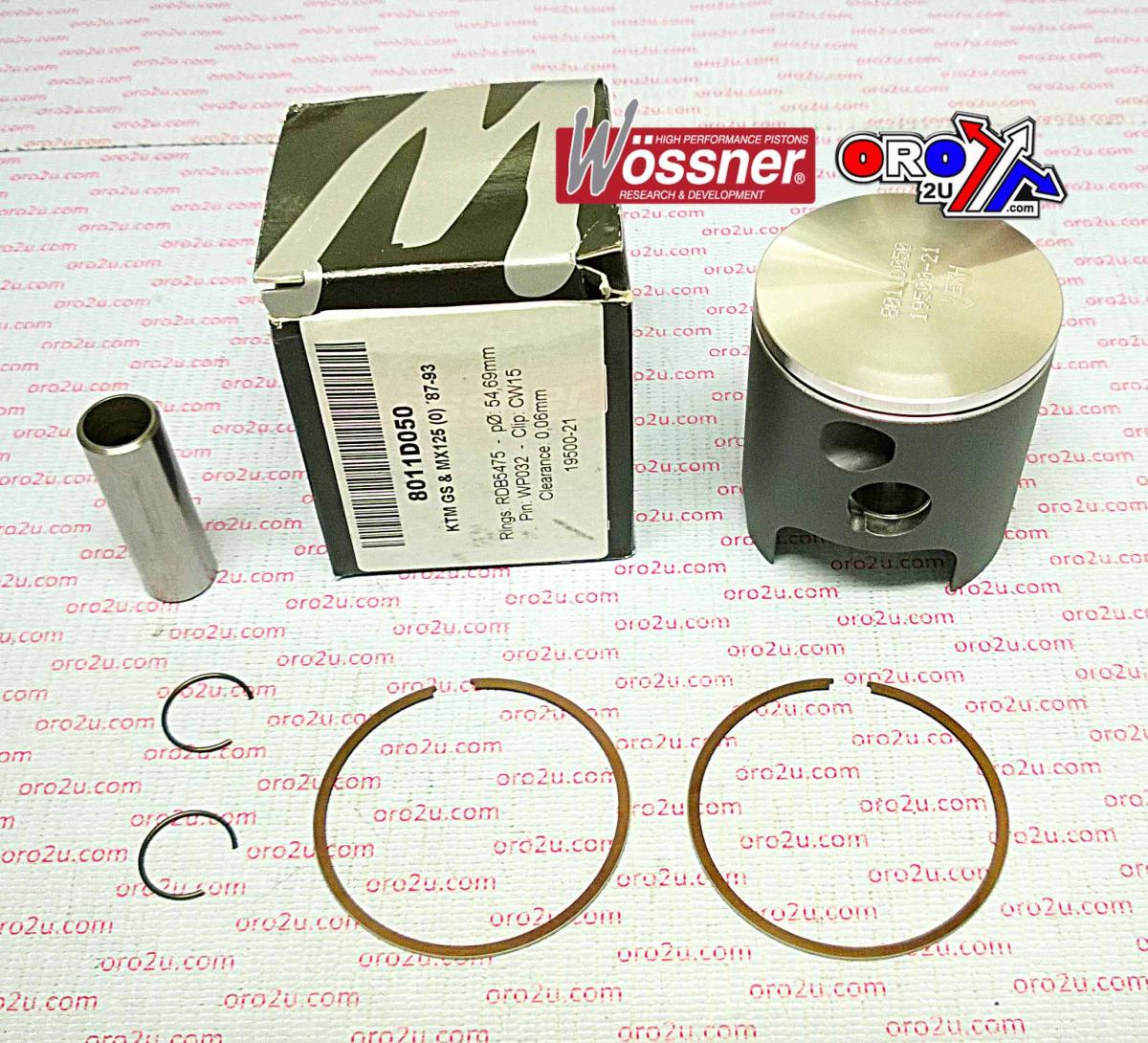

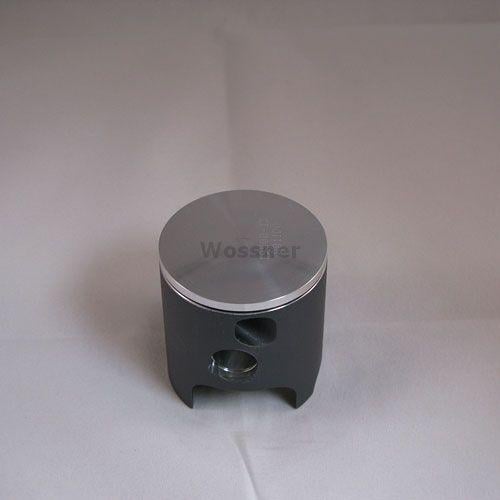

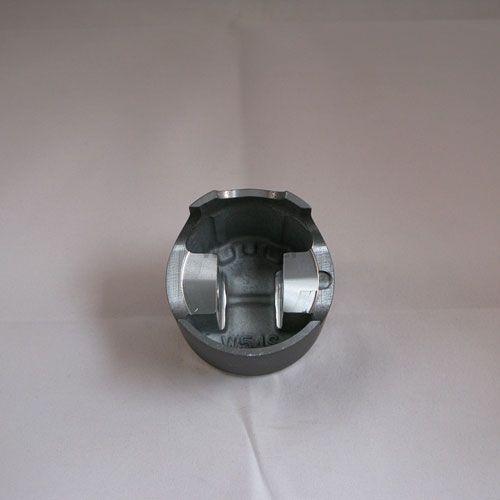

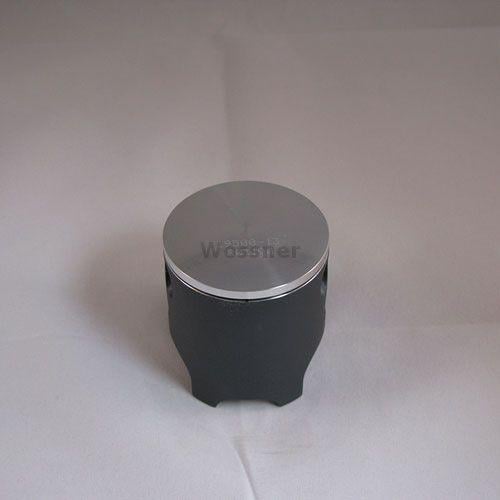

Piston Kit 87-93 KTM125, Wossner 8011DB Forged MX

Piston Kit 87-93 KTM125, Wossner 8011DB Forged MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 87-93 KTM125, Wossner 8011DB Forged MX
• Part number: 56-W627.00B.WO
• Brand: Wossner
• Forged piston design for increased strength and durability
• Optimised heat transfer from combustion chamber to cylinder walls
• Elliptical shape for uniform load distribution and prevention of localised stress
• Manufactured in Germany for high-quality standards
• Display (cm³): 125
• Bore size: 54.20mm (+0.01 oversize)
• Stroke (mm): 54.10
• Piston-to-wall clearance (mm): 0.06
• Compression height (mm): 28.00
• Compression ratio: 2-stroke (Wossner and OEM)
• Cross-Reference OEM Part Numbers
• Wossner Piston: 8011DB
• Lock: CW15
• Pin: WP032
• Ring Set: RSB5425 x 2
• Internal Reference Part No.: 56-W627.00B.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 125cc — 1987–1993
• KTM MX 125cc — 1987–1993
• KTM GS 125cc — 1987–1993

Match your exact make, model, year and specification before ordering.
