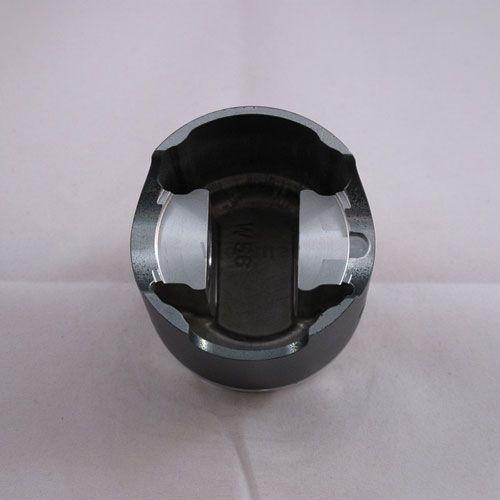

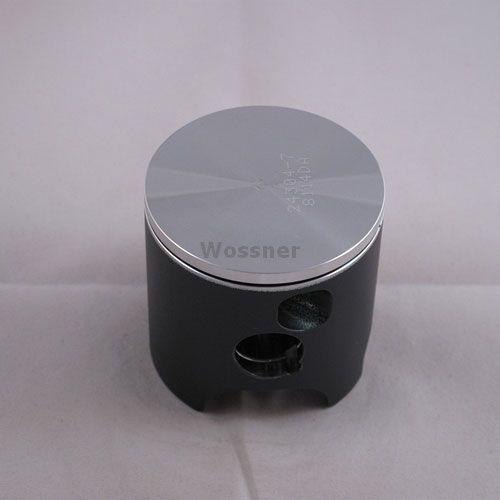

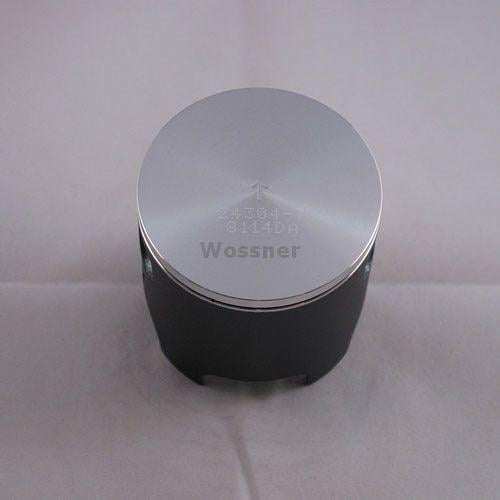

Piston Kit 90-93 YZ125 56.00 B, Wossner 8114DB Yamaha MX

Piston Kit 90-93 YZ125 56.00 B, Wossner 8114DB Yamaha MX. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 90-93 YZ125 56.00 B, Wossner 8114DB Yamaha MX
• Part number: 56-W629+00B.WO
• Brand: Wossner
• Forged construction ensures superior strength and long-term durability
• Heat-optimised design facilitates effective combustion heat dissipation
• Elliptical shape maintains a uniform bearing surface during expansion
• Manufactured in Germany for high precision and consistency
• Display (cm³): 124
• Bore size: 56.01mm (+0.01 oversize)
• Stroke (mm): 50.70
• Piston-to-wall clearance (mm): 0.06
• Compression height (mm): 28.00
• Compression ratio: 2-stroke (Wossner and OEM)

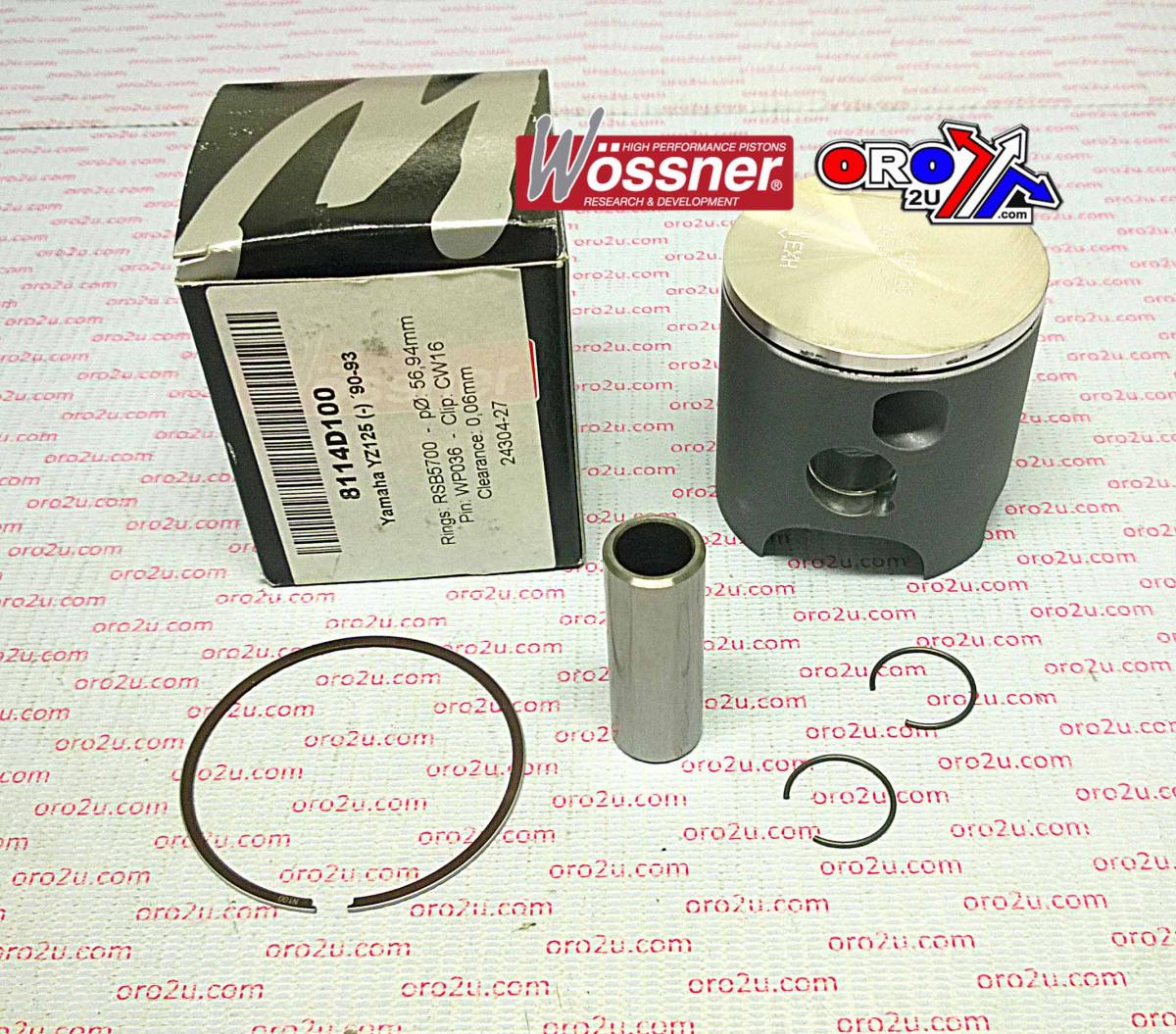

• Cross-Reference OEM Part Numbers
• Wossner Piston: 8114DB
• Lock: CW16
• Pin: WP036
• Ring Set: RSB5600 x 2
• Rod: P2047
• Internal Reference Part No.: 56-W629+00B.WO

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 125cc — 1990–1993
• YAMAHA YZ 125cc — 1993

Match your exact make, model, year and specification before ordering.
