Connecting Rod Kit 78-87 Kawasaki Kdx KX 125 175 200 Vintco KR2008

Connecting Rod Kit 78-87 Kawasaki Kdx KX 125 175 200 Vintco KR2008. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 78-87 Kawasaki Kdx KX 125 175 200 Vintco KR2008
• Part number: VIN-KR2008
• Brand: Vintco

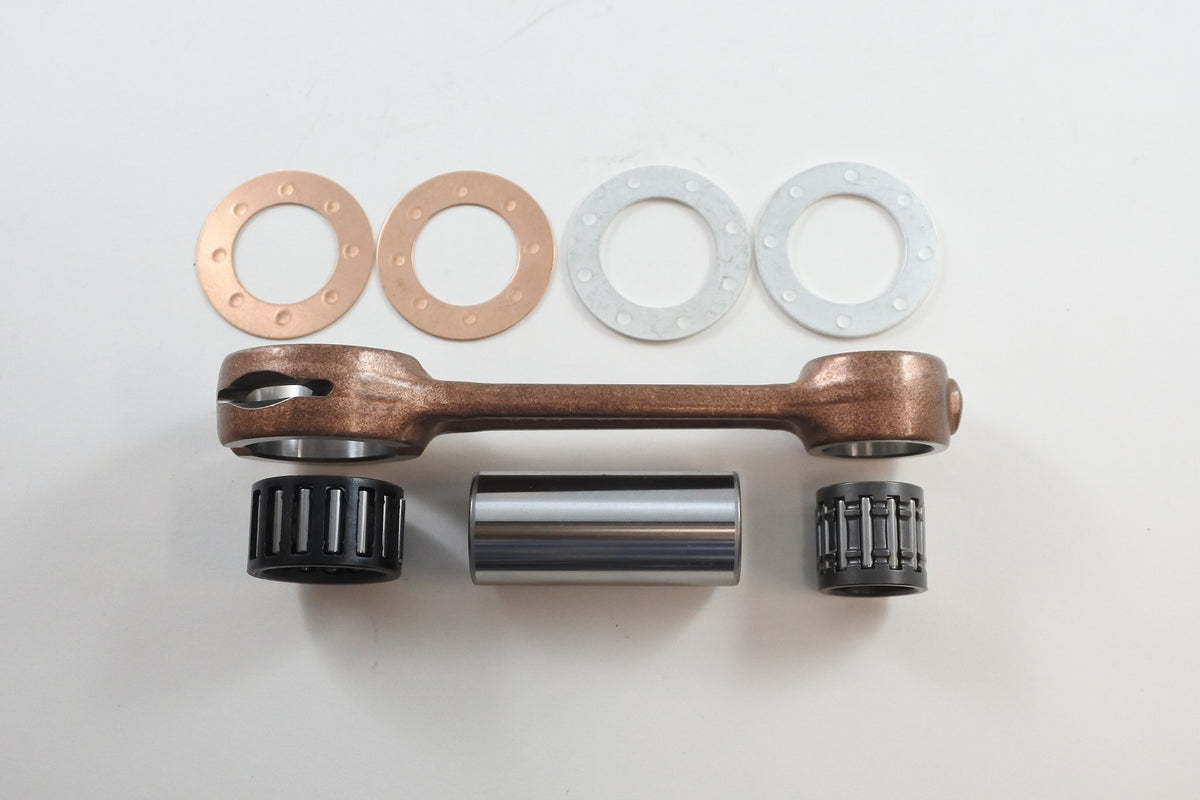

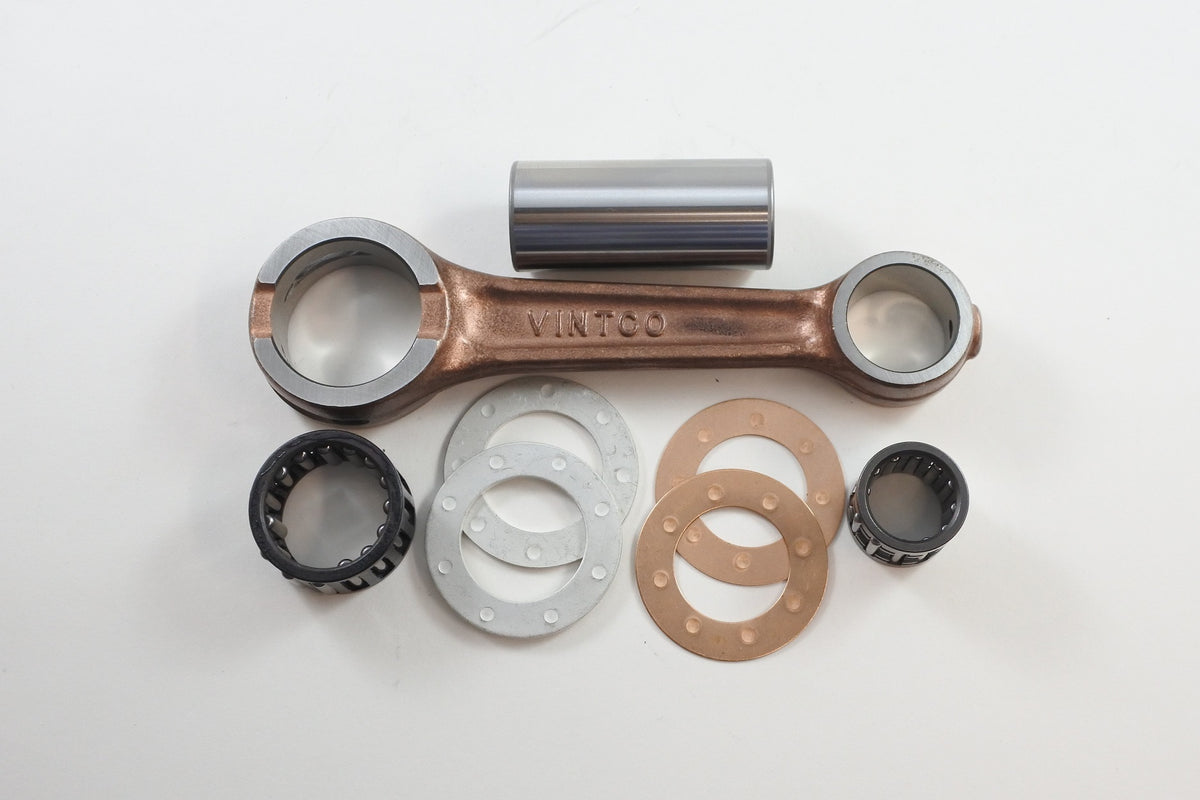

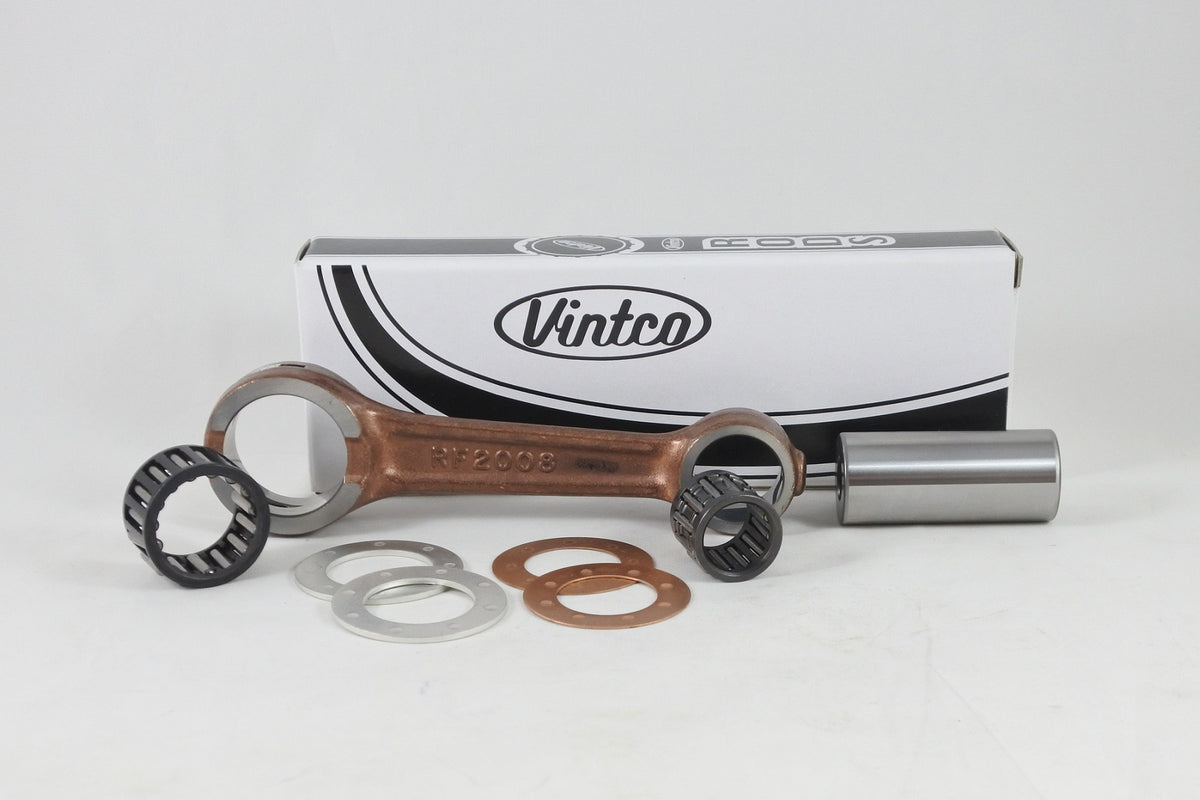

• This connecting rod kit is a replacement crank assembly component set for Kawasaki KX125, KDX175 and KDX200 models listed below. It is designed as an alternative to replacing the complete crankshaft and is manufactured by VintCo using modern production methods for correct fit and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers required for assembly.
• Replacement connecting rod kit for specified Kawasaki models
• Intended for crankshaft rebuilds
• Alternative to replacing a complete crankshaft
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers
• Additional thrust washers included for 1978-1979 KX125 applications
• VintCo Part Number: KR2008
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Crank pin size: 10 x 22 x 51 mm
• Big end bearing size: 22 x 29 x 17 mm
• Wrist pin bearing size: 16 x 21 x 19.5 mm
• Thrust washer size: 22 x 37 x 1 mm
• Thrust washer quantity: 2
• Additional thrust washer size: 22.2 x 37 x 0.5 mm
• Additional thrust washer quantity: 2
• Additional thrust washers fitment note: for use on KX125 1978-1979 only
• Cross-Reference OEM Part Numbers
• OEM Part Number: 13044-5009
• Vehicle Fitments
• 1978 Kawasaki KX125
• 1979 Kawasaki KX125
• 1980 Kawasaki KX125
• 1980 Kawasaki KDX175
• 1981 Kawasaki KX125
• 1981 Kawasaki KDX175
• 1982 Kawasaki KX125
• 1982 Kawasaki KDX175
• 1983 Kawasaki KX125
• 1983 Kawasaki KDX200
• 1984 Kawasaki KX125
• 1985 Kawasaki KX125
• 1986 Kawasaki KX125
• 1987 Kawasaki KX125

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.

Why buy from FDY Performance?

FDY Performance is a UK motorcycle and ATV parts specialist. We help riders find parts with clear specifications, vehicle fitment information where available and support before ordering.

Need help choosing the right part?

Contact us with your bike make, model and year, plus the part number shown above, and we can help you check compatibility.
