Connecting Rod Kit 76-79 Suzuki Pe RM 250 Vintco KR2019

Connecting Rod Kit 76-79 Suzuki Pe RM 250 Vintco KR2019. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 76-79 Suzuki Pe RM 250 Vintco KR2019
• Part number: VIN-KR2019
• Brand: Vintco

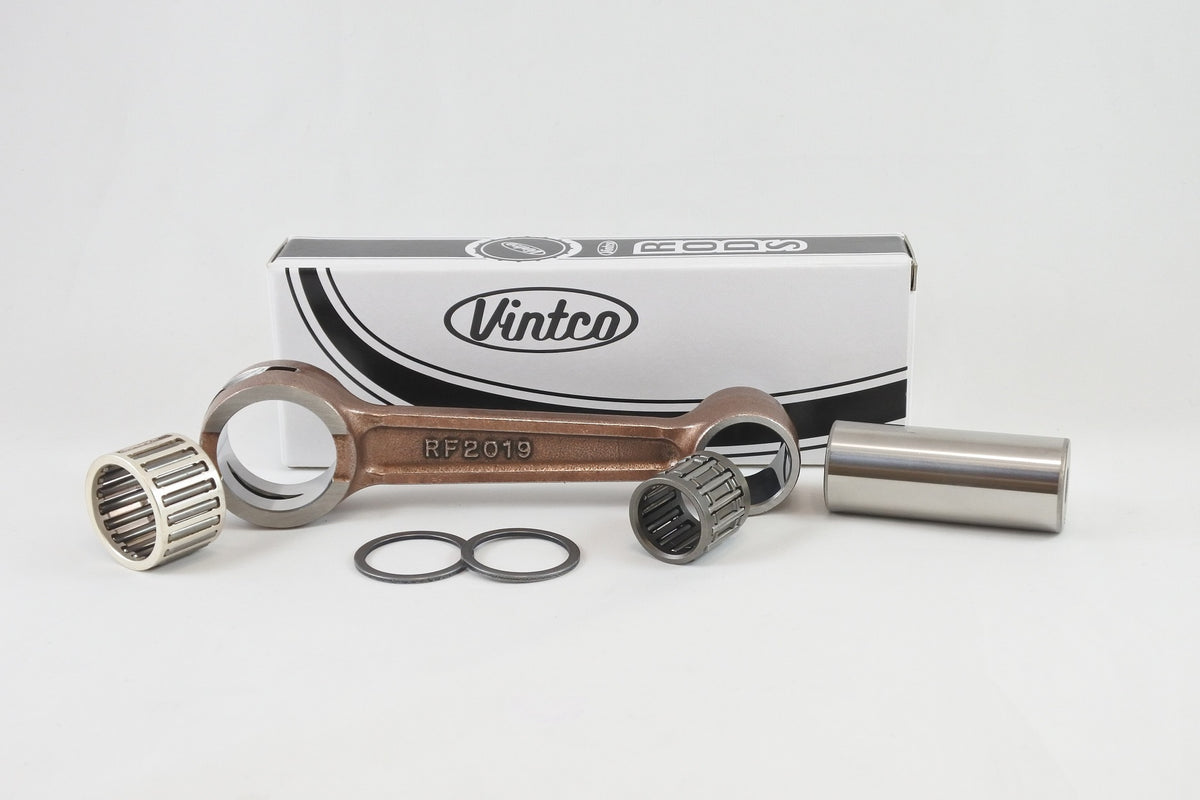

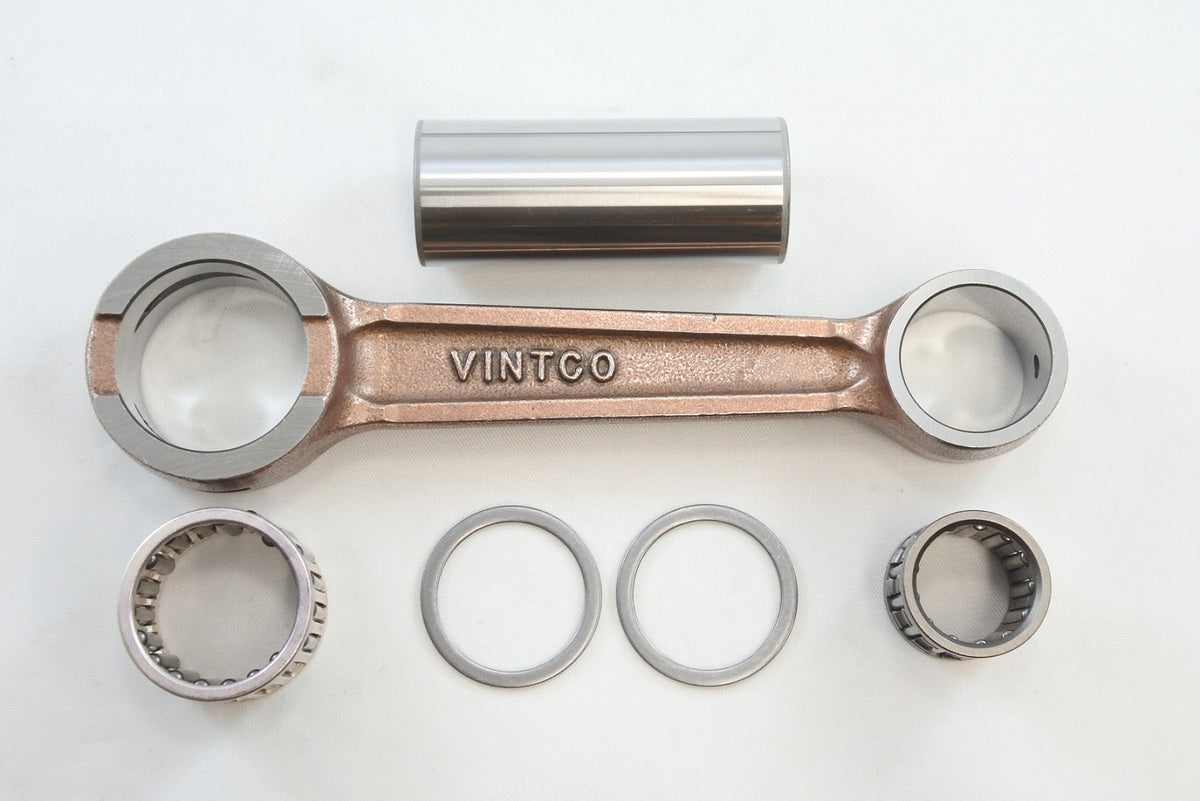

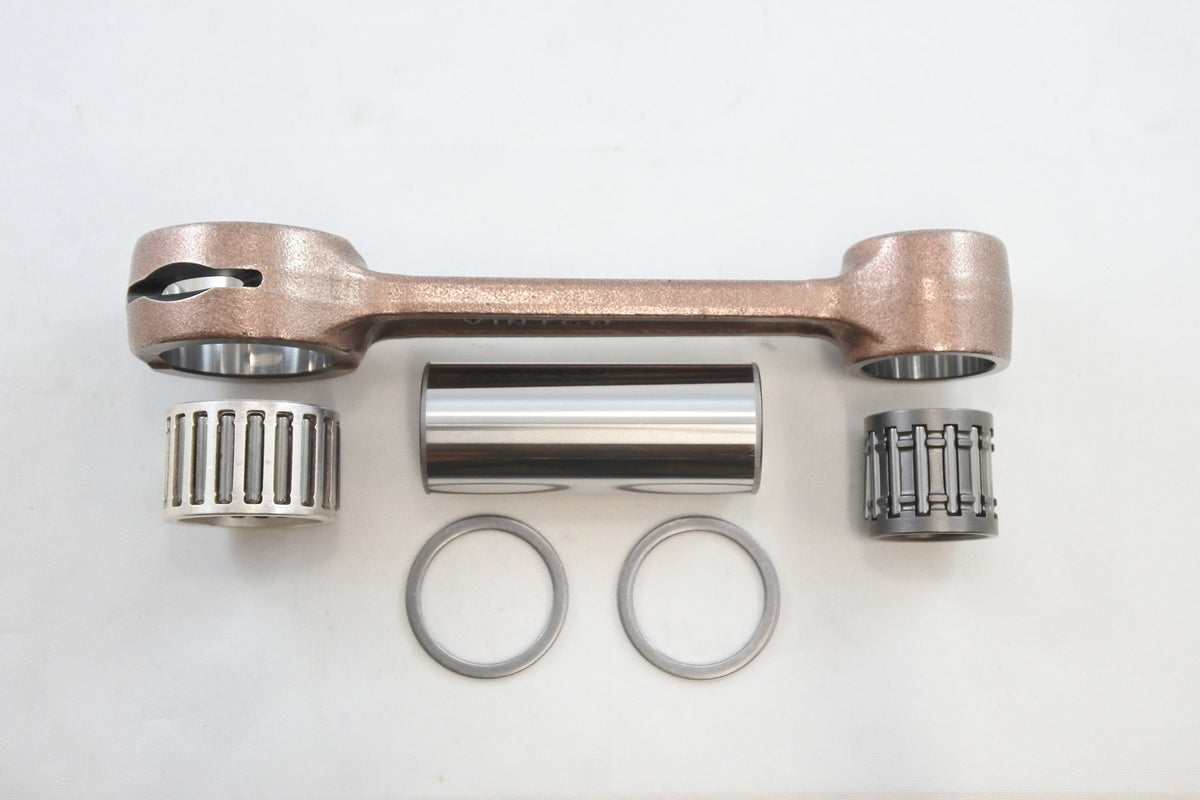

• The VintCo KR2019 connecting rod kit is a newly manufactured replacement assembly for vintage Suzuki 250 dirt bikes, covering selected 1976-1979 RM250 and PE250 models. It is intended as a replacement alternative to a new crankshaft and is supplied as a complete kit with the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.
• Replacement connecting rod kit for vintage Suzuki 250 dirt bikes
• Suitable for selected Suzuki RM250 and PE250 models
• Provides an alternative to replacing the complete crankshaft
• Designed for OEM-equivalent fitment and performance
• Manufactured using modern materials and production techniques
• Supplied with connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers
• Connecting rod dimensions and measurements are available online with pictures
• VintCo Part Number: KR2019
• Connecting rod material: heavy duty forged steel
• Crank pin size: 8 x 24 x 60 mm
• Big end bearing size: 24 x 30 x 20 mm
• Wrist pin bearing size: 18 x 23 x 22 mm
• Thrust washer size: 24 x 29 x 1.5 mm
• Quantity of thrust washers: 2
• Cross-Reference OEM Part Numbers
• Suzuki OE part number: 12161-41103
• Vehicle Fitments
• 1976 Suzuki RM250
• 1976 Suzuki PE250
• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki PE250

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
