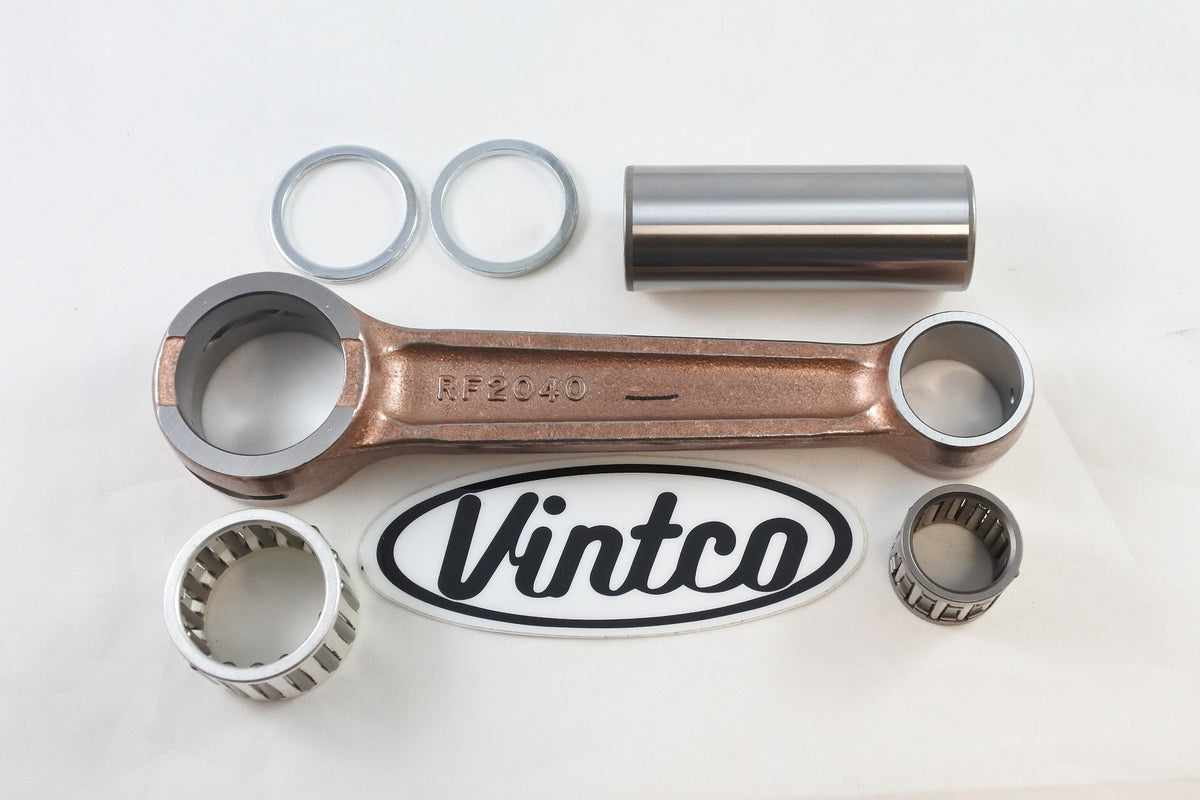

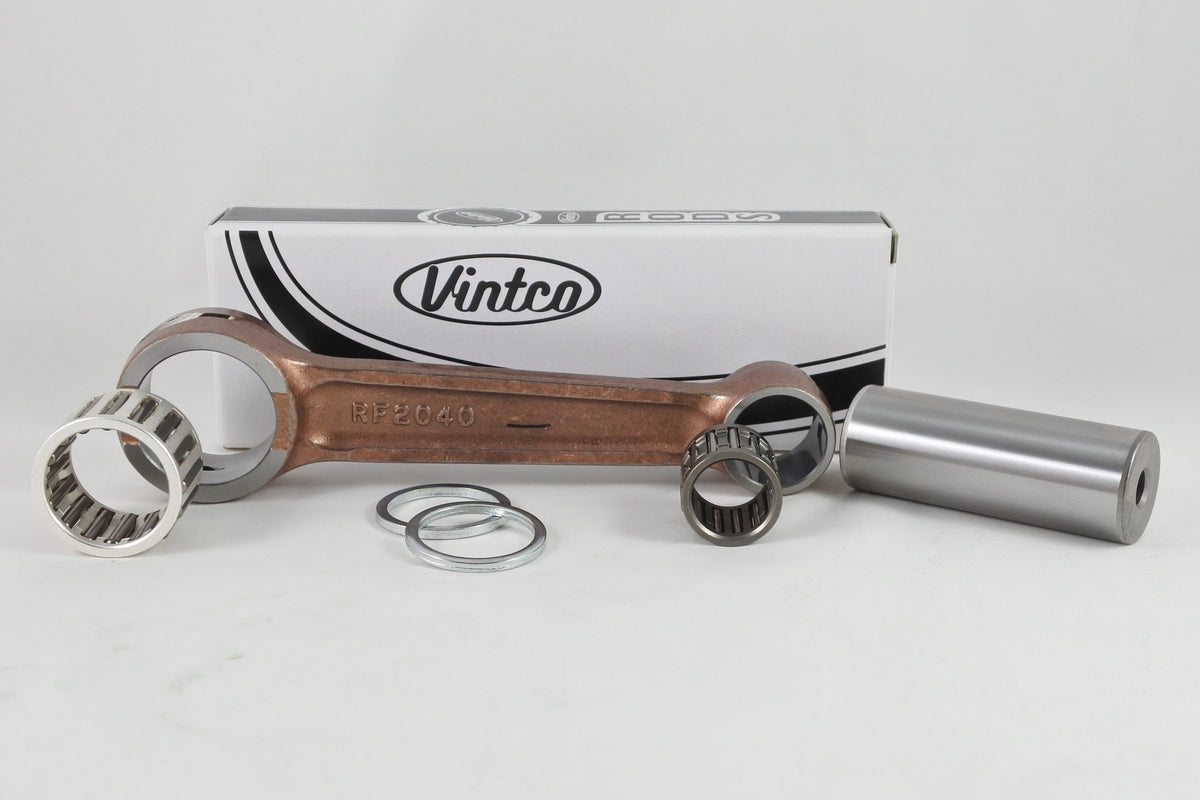

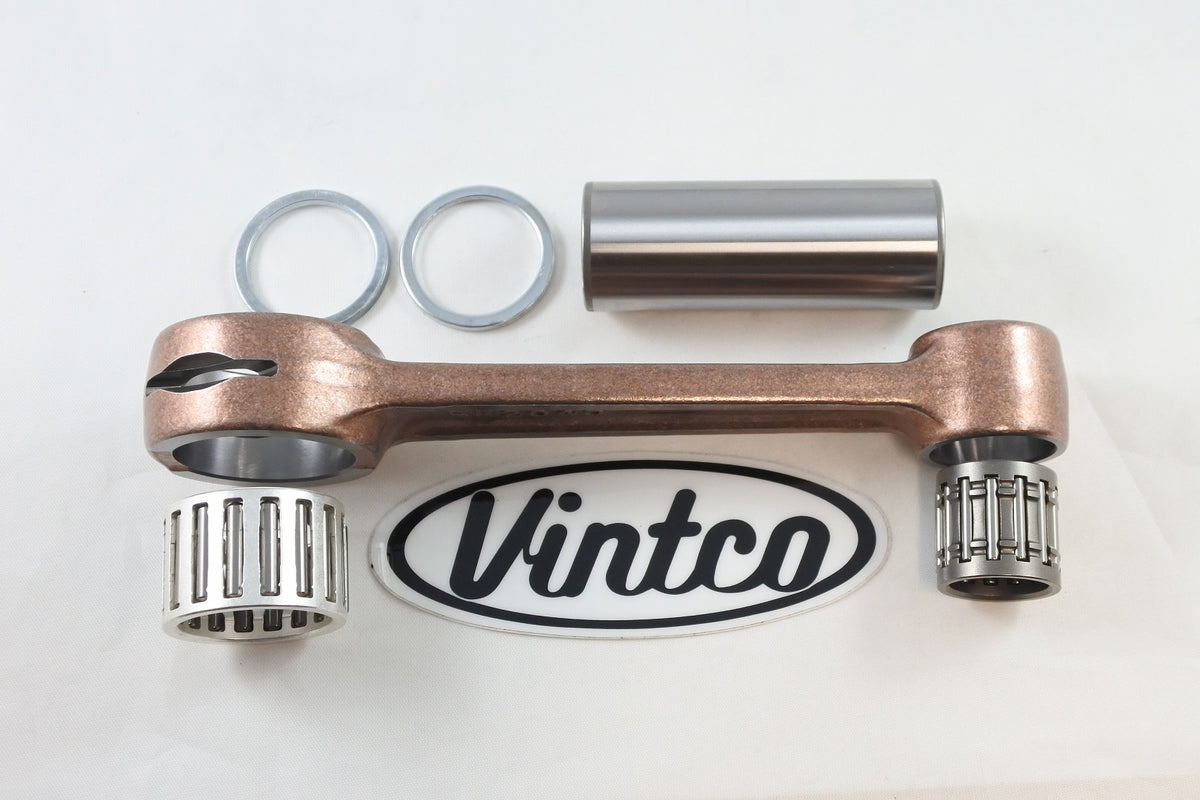

Connecting Rod Kit 83-84 Suzuki RM 500 Vintco KR2040

Connecting Rod Kit 83-84 Suzuki RM 500 Vintco KR2040. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 83-84 Suzuki RM 500 Vintco KR2040
• Part number: VIN-KR2040
• Brand: Vintco
• This VintCo connecting rod kit is a newly manufactured replacement assembly for 1983-1984 Suzuki RM500 models. It is designed for vintage RM500 dirt bikes as a cost-saving alternative to replacing the complete crankshaft, and is produced from heavy duty forged steel using modern materials and manufacturing techniques for OEM-style fitment and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers. Connecting rod dimensions and measurements are available online with images.
• Replacement connecting rod kit for vintage Suzuki RM500 models
• Suitable as an alternative to replacing a complete crankshaft
• Manufactured using modern materials and production techniques
• Intended for OEM-style fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers
• VintCo Part Number: KR2040
• Heavy duty forged steel connecting rod
• Crank pin size: 8 x 26 x 69.9 mm
• Big end bearing size: 26 x 33 x 21.8 mm
• Wrist pin bearing size: 18 x 23 x 21.8 mm
• Thrust washer size: 26.15 x 32 x 2.5 mm
• Quantity of thrust washers: 2
• Cross-Reference OEM Part Numbers
• OE# 12161-14220
• Vehicle Fitments
• 1983 Suzuki RM500
• 1984 Suzuki RM500

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
