Connecting Rod Kit 71-84 Suzuki Ds Pe Rs Ts 175 185 Vintco KR2067

Connecting Rod Kit 71-84 Suzuki Ds Pe Rs Ts 175 185 Vintco KR2067. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 71-84 Suzuki Ds Pe Rs Ts 175 185 Vintco KR2067
• Part number: VIN-KR2067
• Brand: Vintco

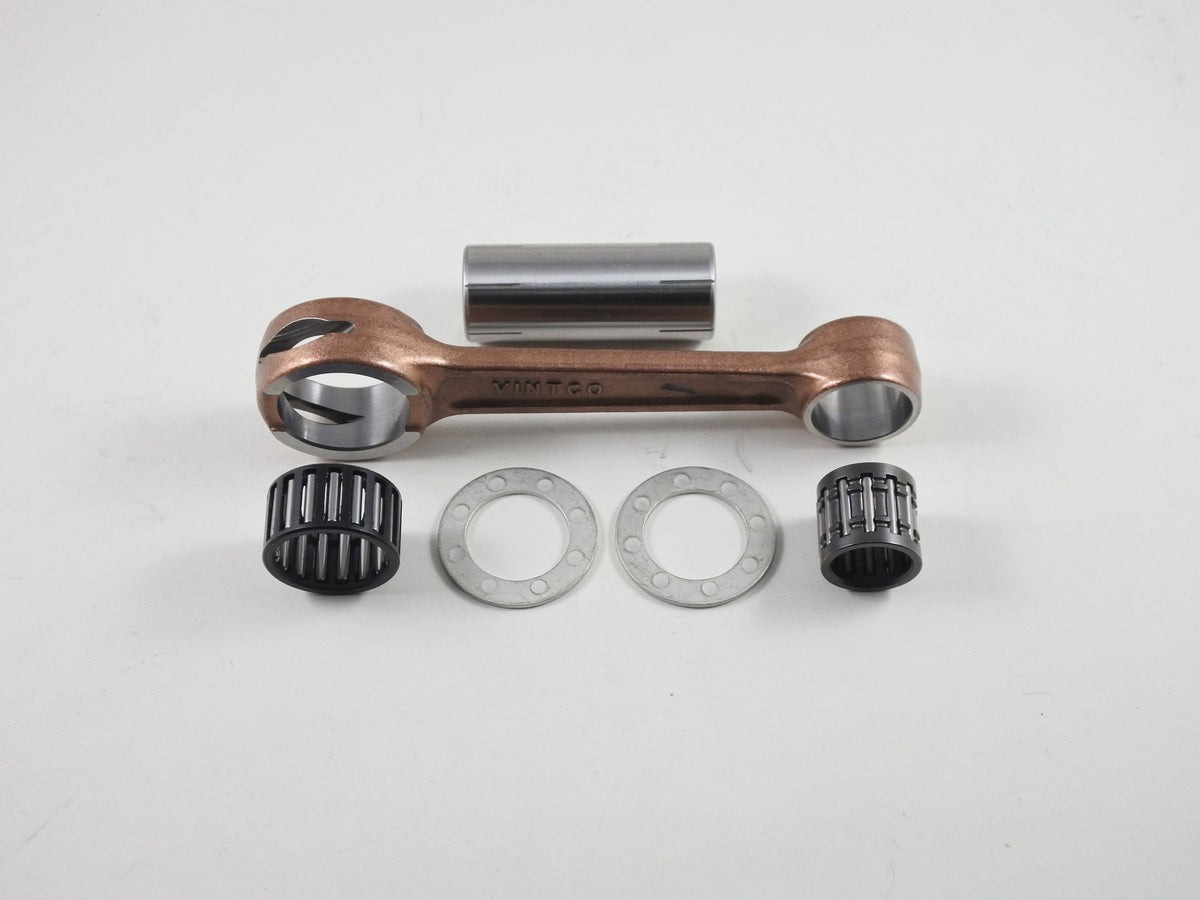

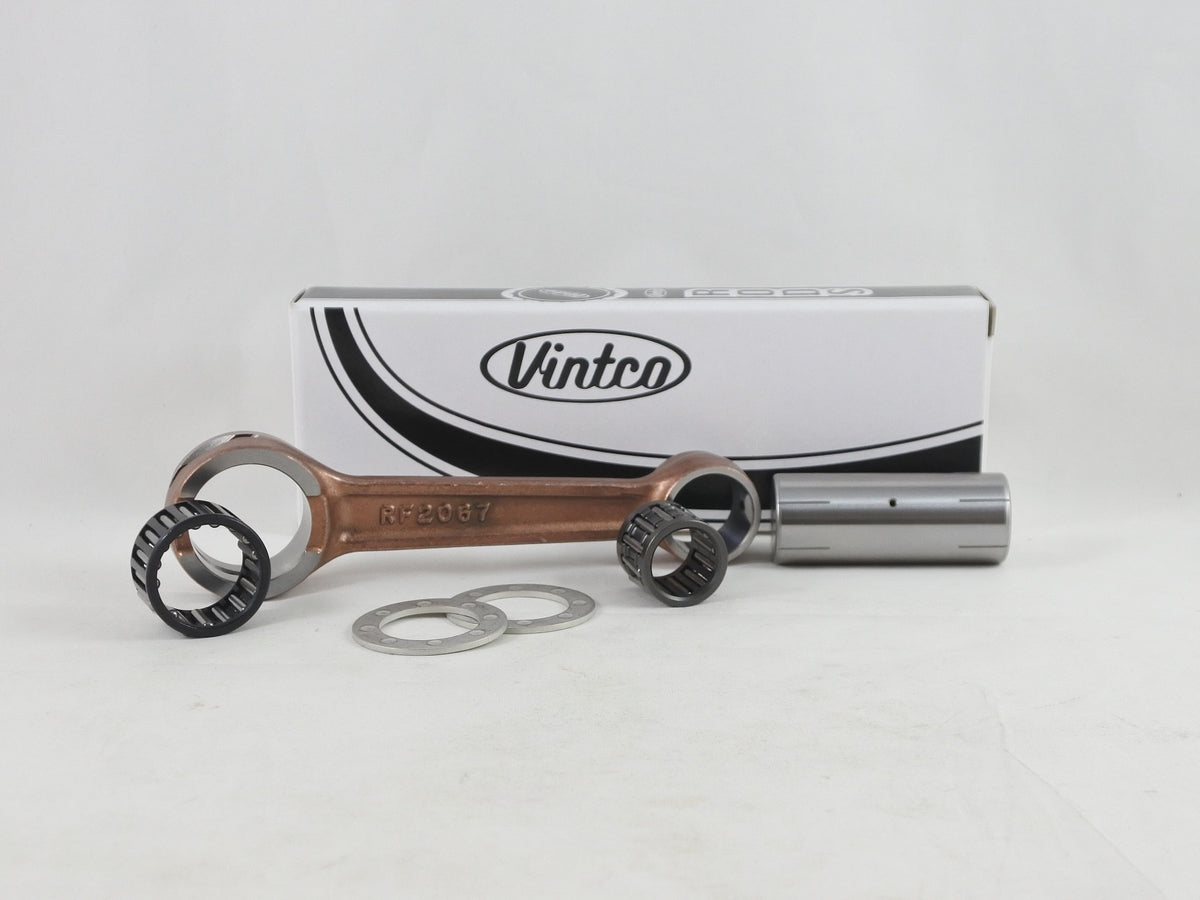

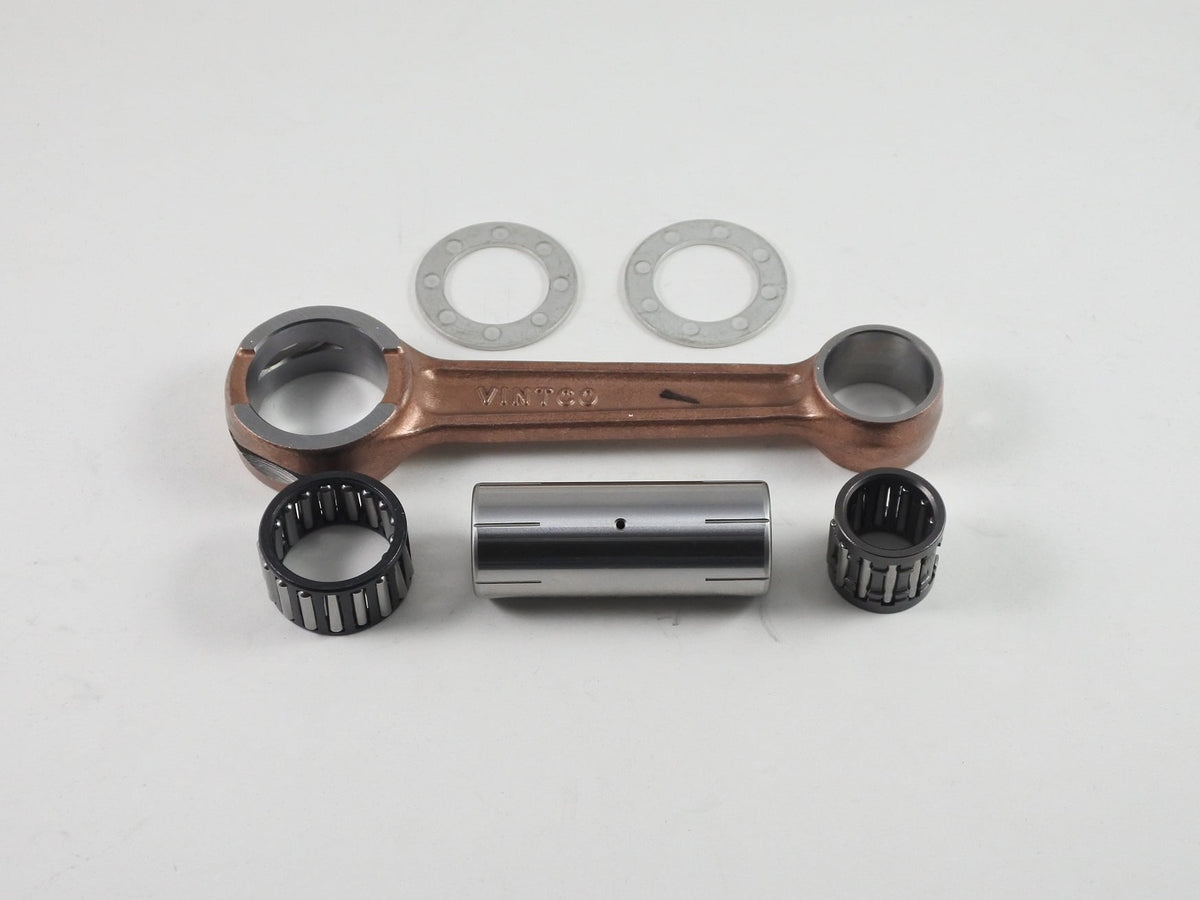

• This connecting rod kit is a replacement assembly for selected 1971–1984 Suzuki DS, PE, RS and TS 175/185 models. It includes one heavy duty forged steel connecting rod, one crank pin, one crank pin bearing, two thrust washers and one wrist pin bearing for connecting rod service or crankshaft rebuild work.
• Replacement connecting rod kit for selected Suzuki 175cc and 185cc two-stroke models
• Includes the main rod and associated pin, bearings and thrust washers
• Intended for connecting rod and crankshaft service work
• VintCo Part Number: KR2067
• Connecting rod quantity: 1
• Connecting rod material: heavy duty forged steel
• Crank pin quantity: 1
• Crank pin size: 6.5 x 22 x 56 mm
• Crank pin bearing quantity: 1
• Crank pin bearing size: 22 x 28 x 15.8 mm
• Thrust washer quantity: 2
• Thrust washer size: 22.25 x 34.9 x 1.0 mm
• Wrist pin bearing quantity: 1
• Wrist pin bearing size: 16 x 21 x 19.5 mm
• Vehicle Fitments
• 1971 Suzuki TS185
• 1972 Suzuki TS185
• 1973 Suzuki TS185
• 1974 Suzuki TS185
• 1975 Suzuki TS185
• 1976 Suzuki TS185
• 1977 Suzuki TS185
• 1978 Suzuki PE175
• 1978 Suzuki DS185
• 1978 Suzuki TS185
• 1979 Suzuki PE175
• 1979 Suzuki DS185
• 1979 Suzuki TS185
• 1980 Suzuki PE175
• 1980 Suzuki RS175
• 1980 Suzuki DS185
• 1980 Suzuki TS185
• 1981 Suzuki PE175
• 1981 Suzuki RS175
• 1981 Suzuki TS185
• 1982 Suzuki PE175
• 1982 Suzuki RS175
• 1983 Suzuki PE175
• 1984 Suzuki PE175

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
